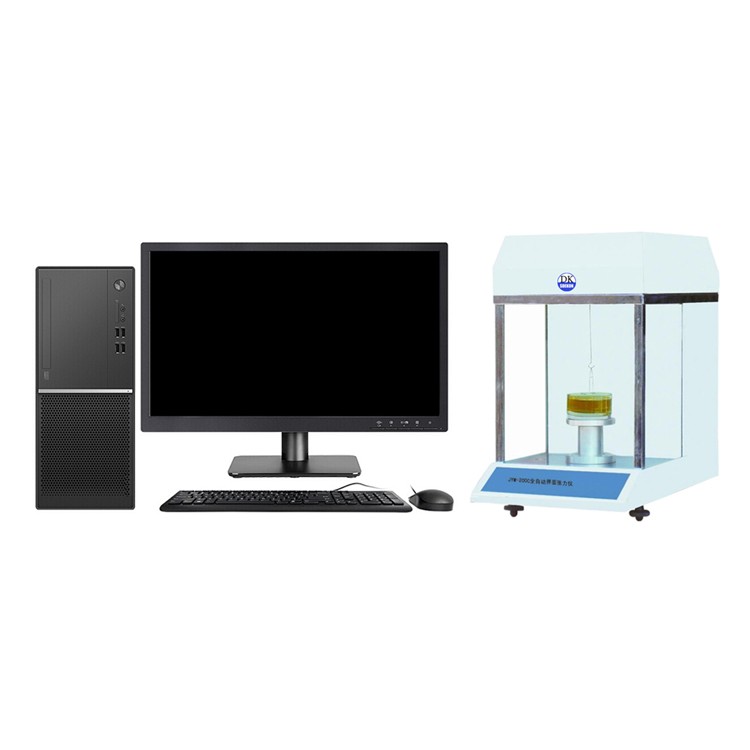

SDEKON JYW-200C Computer Control Fully Automatic Interface Tensiometer

1.Application:

SDEKON JYW-200C Computer Control Fully Automatic Interface Tensiometer use the physical methods

instead of chemical methods. This device has the peak hold function, the peak hold indication function,

the rising and falling automatic indication function, the liquid film rupture automatic stop function, the

enter liquid level automatic stop function, electronic automatic adjustment zero function, the electronic

automatic adjustment zero indication, can automatic calculate various liquid surfaces and actual tension

values of the interface, automatic calculate the average value of the actual tension value, and one-key

adjustment zero function.

The device use Windows XP interface, can work for a long time, automatic display result, the recording

curve can be stored and printed. Smooth operation and low noise.

2.Technical Parameter:

Model	JYW-200C
Measuring Range	0-200.00 mN/m
Resolution	0. 01 mN/m
Zero Drift	≤0.1 mN/m (Within 15 min)
Accuracy	≤±0.04 mN/m (Secondary Distillation of Water or Ethanol)
Repeatability	≤±0.04 mN/m (Secondary Distillation of Water or Ethanol)
Relative Error Of Indication	Not More Than ±2%
Reproducibility Error Of Indication	Not More Than 2%
Sample Holder Stroke	25 mm
Sample Holder Lifting Speed	15 mm/min±2 mm/min
Sample Cup Inner Diameter	56 mm
Sample Cup Capacity	60 m L
Platinum Wire Radius	0.3 mm
Platinum Wire Circumference	60 mm
Ambient Temperature	Room Temperature 10℃-35℃
