Description:
1.Application:

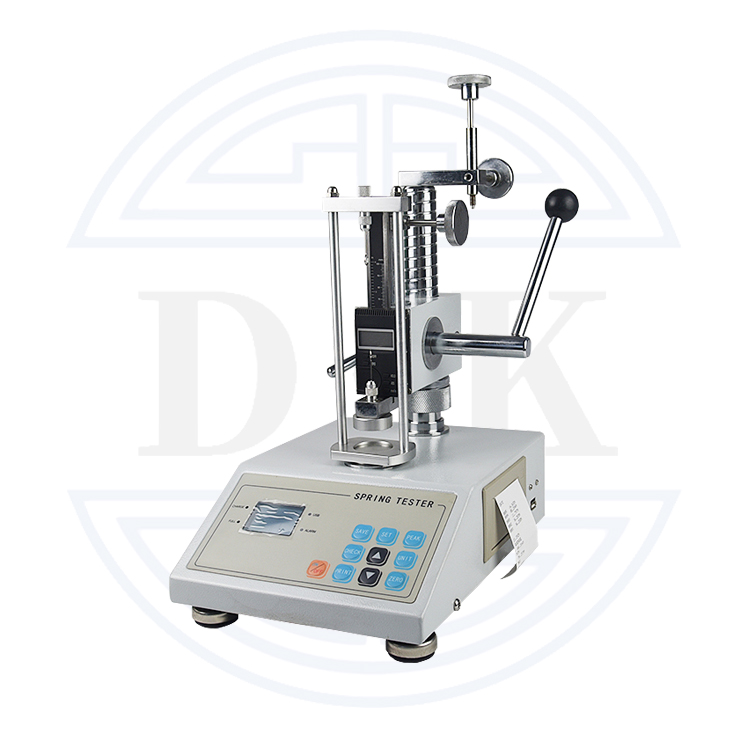

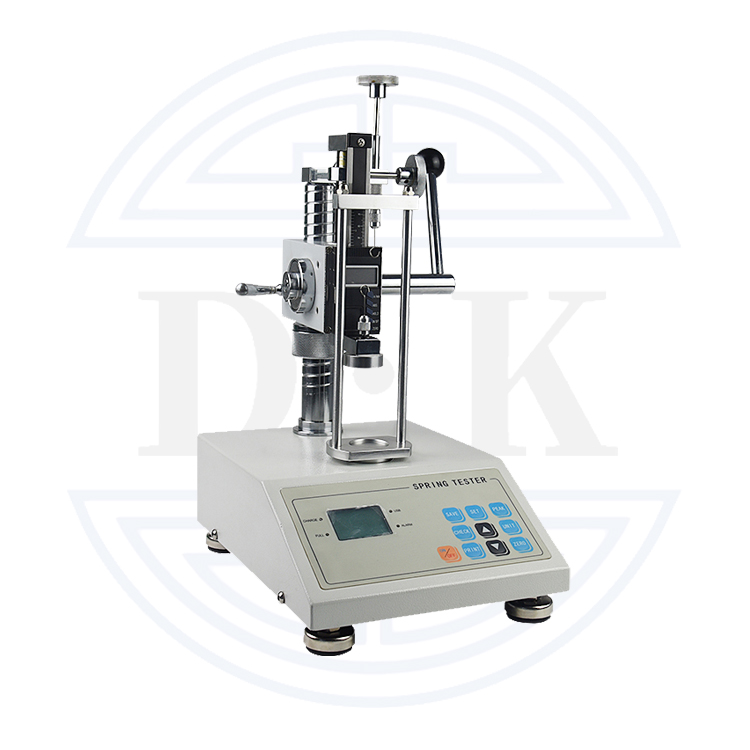

ATH Series Digital Display Spring Tester is used to test amount of deformation and characteristic
of load relation of extension and compression springs.
It can be applied to test of working load of extension and compression springs under the certain
working length. Advanced and highly integrated chip microprocessor is adopted by this machine,
which also has liquid crystal display (English) and metal enclosure.
The interference-killing feature of the system is thus greatly improved.
2.Technical Parameter:
Model (P Is Micro-printer) | ATH-10 | ATH-20 | ATH-30 |
ATH-10P | ATH-20P | ATH-30P |
Max. Test Load | 10 N | 20 N | 30 N |
Min. Resolution | 0.001 N |
0.0001 Kg |
0.0001 Lb |
Length Of Travel Of Displacement Scale | 60 mm |
Division Value Of Displacement Scale | 0.01 mm |
Platen Diameter | 34 mm |
Max. Free Length Of Measurable Spring | 80 mm |
Indication Error | ±1% |
Working Temperature | 20±10℃ |
Power Supply | 1-Phase, AC 220V, 50Hz |
