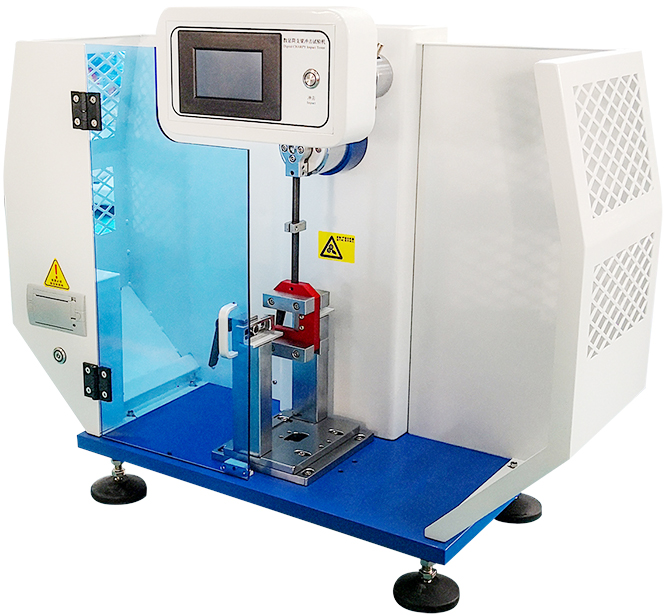

DK-JZL-5D Touch Screen Digital Display Charpy Impact Testing Machine

1.Product Introduction:

DK-JZL Series Touch Screen Digital Display Charpy Impact Testing Machine is mainly used for the determination

of the impact toughness of non-metallic materials such as hard plastics, reinforced nylon, glass fiber reinforced

plastics, ceramics, cast stones, and electrical insulating materials.

It adopts high-precision encoder technology and has the characteristics of high accuracy, good stability and

large measurement range.

Digital measurement displays the impact strength and average value, automatic correction of energy loss, printing

test report and other functions.

It is an instrument with simple structure, easy operation and high testing accuracy.

It is a commonly used equipment for quality inspection in scientific research institutions, colleges and universities,

and non-metallic material manufacturers.

2.Test Standards:

ISO179-2000	PLASTICS - DETERMINATION OF IMPACT STRENGTH OF CHARPY OF HARD MATERIALS
GB/T1043-2008	IMPACT TEST METHOD FOR CHARPY OF RIGID PLASTICS
JB/T8762-1998	PLASTIC CHARPY IMPACT TESTING MACHINE
GB/T 18743-2002	THERMOPLASTIC PIPES FOR FLUID TRANSPORTATION - SUPPORTED BEAM IMPACT TEST METHOD (APPLICABLE TO PIPE PARTS)

3.Technical Parameter:

Model	DK-JZL-5D	DK-JZL-15D	DK-JZL-50D
Pendulum Energy	1 J、2 J、4 J、5 J	7.5 J、15 J	25 J、50 J
Pendulum Force Moment	1J MN = 0.53590 N.m 2J MN = 1.07180 N.m 4J MN = 2.14359 N.m 5J MN = 2.67949 N.m	7.5J MN = 4.01929 N.m 15J MN = 8.0385 N.m	25J MN = 13.3976 N.m 50J MN = 26.7952 N.m
Display Mode	4.3-Inch Color Touch Screen
Energy Accuracy	0.01 J
Impact Velocity	2.9 m/s	3.8 m/s	3.8 m/s
Pendulum Pre-Evalution Angle	150°
Distance Between Pendulum Center To Sample Center	230 mm	395 mm	395 mm
Jaws Support Spacing	40 mm、60 mm、70 mm、95 mm
Fillet Radius Of Supporting Blade	R = 1 mm
Fillet Radius Of Impact Blade	R = 2 mm ± 0.5 mm
Impact Blade Angle	30°±l°
Angle Sensor	Original Imported OMRON Encoder, Angle Accuracy 0.01°
Output Method	Micro-printer Printout
