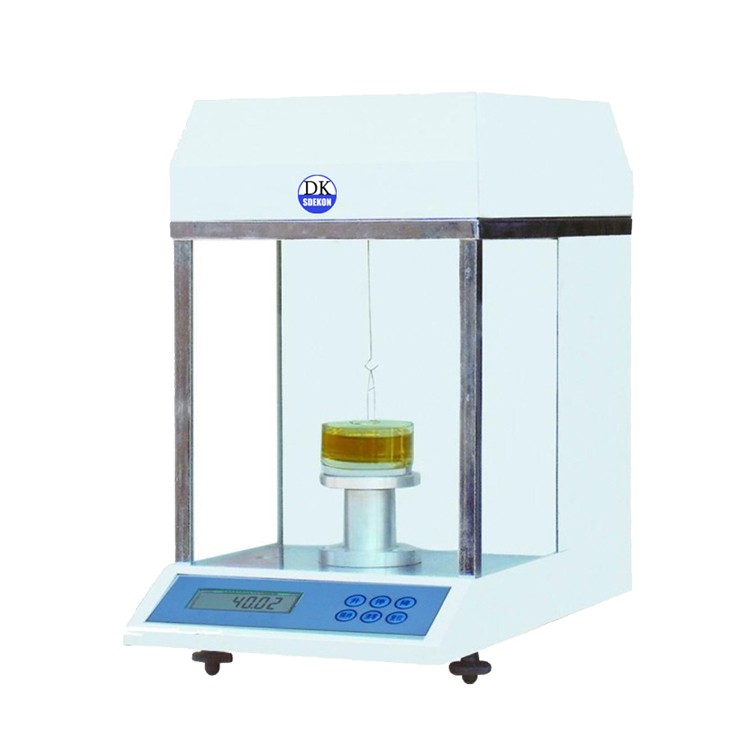

SDEKON JYW-200B Automatic Interface Tensiometer

1.Application:

SDEKON JYW-200B Automatic Interface Tensiometer use physical methods instead of chemical methods.

This device has the peak hold function, the peak hold indication function, the rising and falling automatic

indication function, the liquid film rupture automatic stop function, the enter liquid level automatic stop

function, the electronic automatic adjustment zero function, the electronic automatic adjustment zero

indication, can automatic calculate various liquid surfaces and actual tension values of interface, automatic

calculate the average value of actual tension value, and the one-key adjustment zero function.

We have reserved the printer interface, the customers can connect their printers to print the test reports.

2.Technical Parameter:

Model	JYW-200B
Measuring Range	0-200.00 mN/m
Resolution	0. 01 mN/m
Zero Drift	≤0.1 mN/m (Within 15 min)
Relative Error Of Indication	Not More Than ±2%
Reproducibility Error Of Indication	Not More Than 2%
Sample Holder Stroke	25 mm
Sample Holder Lifting Speed	15 mm/min±2 mm/min
Sample Cup Inner Diameter	56 mm
Sample Cup Capacity	60 m L
Platinum Wire Radius	0.3 mm
Platinum Wire Circumference	60 mm
Ambient Temperature	Room Temperature 10℃-35℃
