Description:
1.Application:

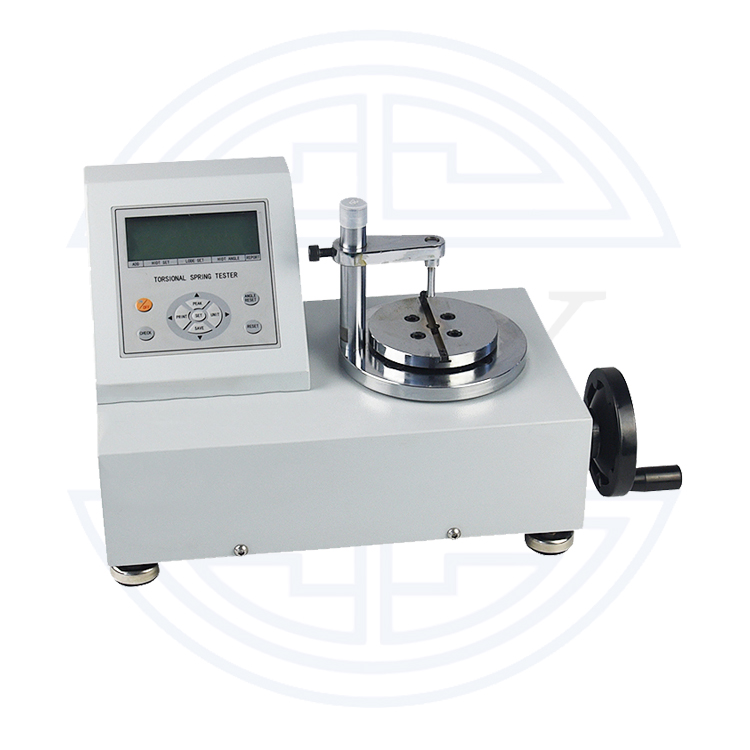

ANH Series Digital Display Torsional Spring Tester is a kind of intelligent multi-functional
measuring instrument used for testing and inspection of torsion spring.
With simple operation, high precision, easy to carry, complete functions, widely used in
all kinds of electric, light industry, machinery manufacturing, research institutions, etc.
2.Technical Parameter:
Model | Biggest Test Torque | Measurement Range | Min. Read Values |
ANH-500A | 500 mN﹒m | 5~500 (mN﹒m) | 0.01 mN﹒m |
ANH-1000A | 1000 mN﹒m | 10~1000 (mN﹒m) | 0.1 mN﹒m |
ANH-2000A | 2000 mN﹒m | 20~2000 (mN﹒m) | 0.1 mN﹒m |
ANH-3000A | 3000 mN﹒m | 30~3000 (mN﹒m) | 0.1 mN﹒m |
ANH-5000A | 5000 mN﹒m | 50~5000 (mN﹒m) | 0.1 mN﹒m |
Model | Biggest Test Torque | Measurement Range | Min. Read Values |
ANH-1 | 1 N﹒m | 0.01~1 (N﹒m) | 0.0001 N﹒m |
ANH-2 | 2 N﹒m | 0.02~2 (N﹒m) | 0.0001 N﹒m |
ANH-3 | 3 N﹒m | 0.03~3 (N﹒m) | 0.0001 N﹒m |
ANH-5 | 5 N﹒m | 0.05~5 (N﹒m) | 0.0001 N﹒m |
ANH-10 | 10 N﹒m | 0.1~10 (N﹒m) | 0.001 N﹒m |
ANH-20 | 20 N﹒m | 0.2~20 (N﹒m) | 0.001 N﹒m |
Angle Resolution: 0.1°
Torque Disc Diameter: 100mm
The Tested Spring Height:＜80mm
Max. Read Values Of Torsional Horn: 9999.9°
