Description:
1.Application:

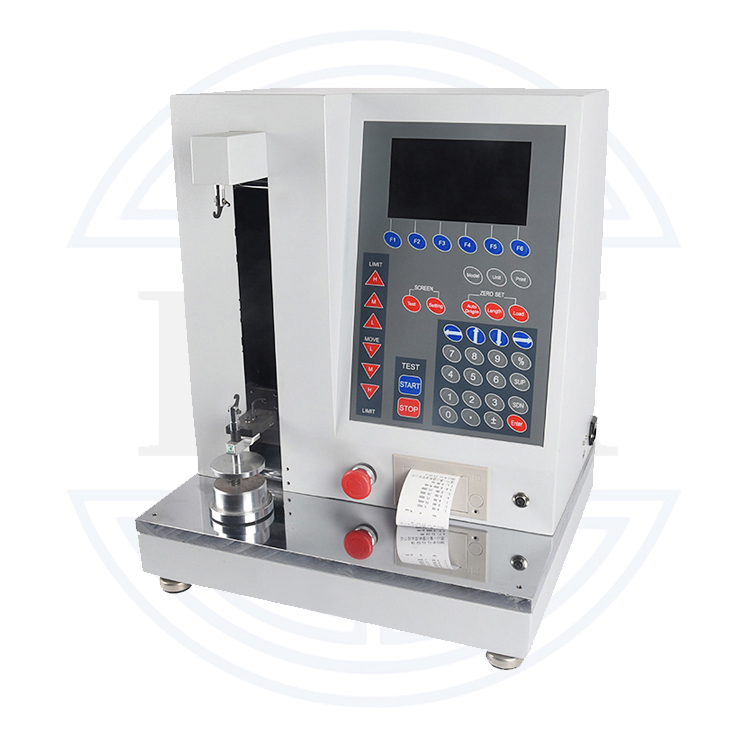

ATSM Series Fully Automatic Spring Tester is a new type spring tester that combines advanced
electronic technology and efficient and precise mechanical transmission.
It is based on the technical requirement specified in the international JB/T7796-2005 <Technical
Conditions Of Spring Tension And Compression Testing Machines> production.
Equipped with high-precision sensors for precise loading and positioning.
It is mainly applicable to tensile, compression, stiffness, fatigue and other tests of elastic devices
such as springs, rubbers, and reeds under a certain working length.
Widely used in spring manufacturing companies.
2.Technical Parameter:
Model | ATSM-10 | ATSM-20 | ATSM-50 | ATSM-100 | ATSM-200 | ATSM-500 |
Load Capacity | 10N | 20N | 50N | 100N | 200N | 500N |
Min. Division Value | 0.0001N | 0.001N | 0.001N | 0.001N | 0.01N | 0.01N |
Unit Selection | N, Kgf, Lbf |
Accuracy | ±0.5% (10%~100% Of Full Scale) |
Length (Displacement) Accuracy | 0.01 mm |
Max. Stroke | 170 mm |
Speed Range | 1-500 mm/min |
Standard Compression Plate Diameter | Φ60 mm |
Manual Keys Can Be Moved At Once | 1mm, 0.1mm, 0.01mm |
Test Selection | Compression, Extension |
Supply Power | 1-Phase, AC 220V, 50Hz, 4.5A |
Spring Test Selection | (1). Set The Length To Test The Load (2).Set The Load To Test The Length (3).Set The Deformation To Test The Load (4).Set The Load To Test The Deformation |
