Description:
1.Application:

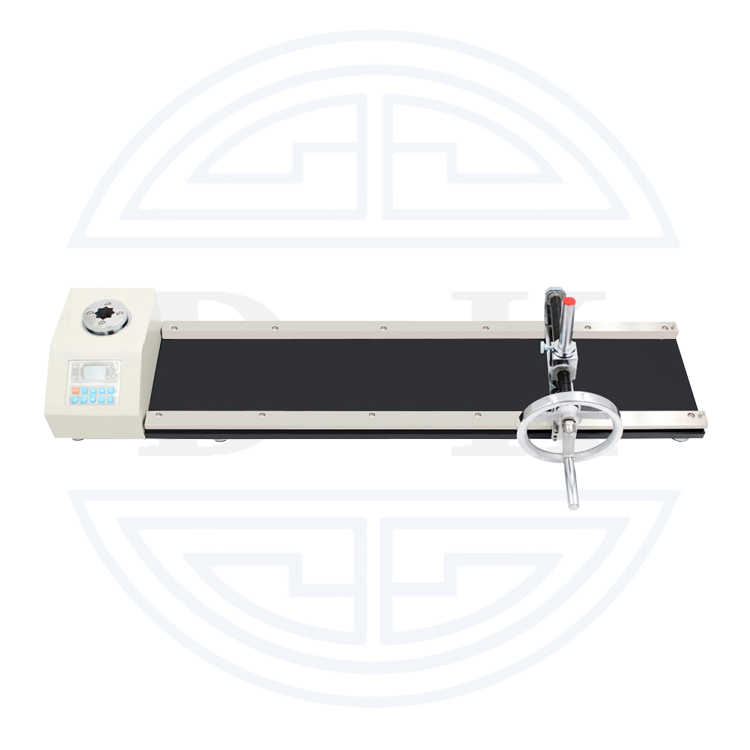

ANJ Series Digital Display Torque Wrench Calibrator is an intelligent multi-functional measuring
instrument which is designed for testing torque wrench.
It main used in testing and calibrating various kinds of Concentration type torque wrench, digital
type torque wrench, preset type torque wrench, torsion screwdriver, screwdriver and all kinds of
products involving tighten force instrument.
Widely used in electrical manufacturing, mechanical manufacturing, automotive light industry
and in scientific research and testing industry.
2.Technical Parameter:
Model | ANJ-300 |
Measuring Range | Min. | 30.0 N·m |
Max. | 300.0 N·m |
Division Value | 0.01 N·m |
Measuring Range | 3063.1 Kgf·cm |
Division Value | 0.1 Kgf·cm |
Measuring Range | 2658.6 Lbf·in |
Division Value | 0.1 Lbf·in |
Testing Length Range | 150~900 mm |
Width Stroke | 330 mm |
Height Stroke | 140 mm |
Precision | ±1% (10%~100% Of Full Scale) |
Peak Value Sampling Frequency | 2000 HZ |
Power | 7.2V 1.2VX6 Ni-MH Battery Group |
Charging Time | 10~12 Hours |
Continuous Using Time Of Battery | About 10 Hours |
Battery Life | ≥300 Times |
Power Adapter | Input: AC 220V 50HZ Output: DC 12V 500mA |
