Description:
1.Application:

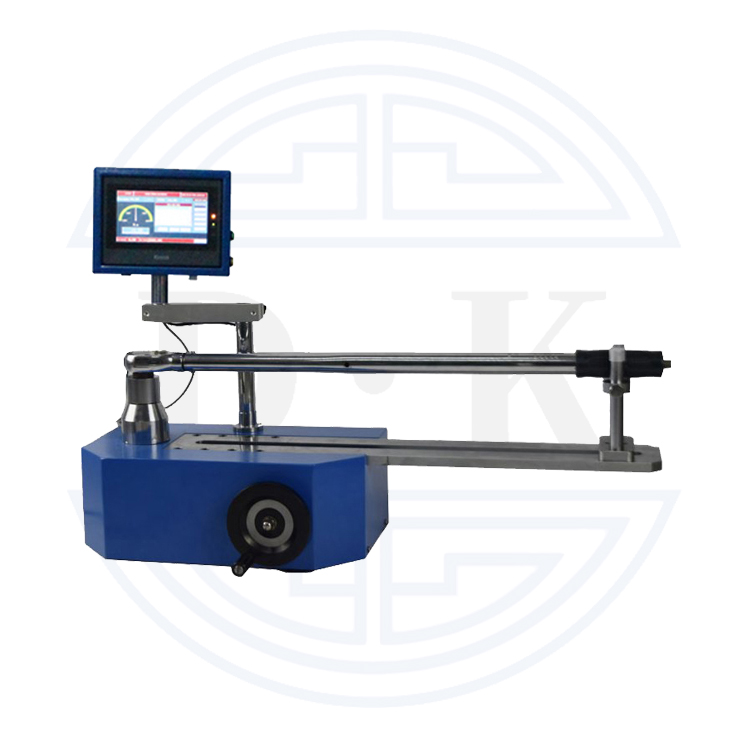

ANJ-M300 Torque Wrench Calibrator is an intelligent multi-functional measuring instrument which
is designed for testing torque wrench, torque screwdriver, it is touch screen digital display type.
It main used in testing and calibrating various kinds of concentration type torque wrench, digital type
torque wrench, preset type torque wrench, torsion screwdriver, screwdriver and all kinds of products
involving tighten force instrument.
Widely used in electrical manufacturing, mechanical manufacturing, automotive light industry and in
scientific research and testing industry.
2.Technical Parameter:
Model | ANJ-M300 |
Measuring Range | Min. | 30 N·m |
Max. | 300 N·m |
Division Value | 0.01 N·m |
Measuring Range | 3063.1 Kgf·cm |
Division Value | 0.1 Kgf·cm |
Measuring Range | 2658.6 Lbf·in |
Division Value | 0.1 Lbf·in |
Dimension | 880×350×550 mm |
Length Range | 130~750 mm |
Angle Of Rotation | 0~60° |
Height Stroke | 130 mm |
Accuracy | ±1% |
Peak Sampling Frequency | 2000 Hz |
Supply Power | 1-Phase, AC 220V, 50Hz |
