Description:
1.Application:

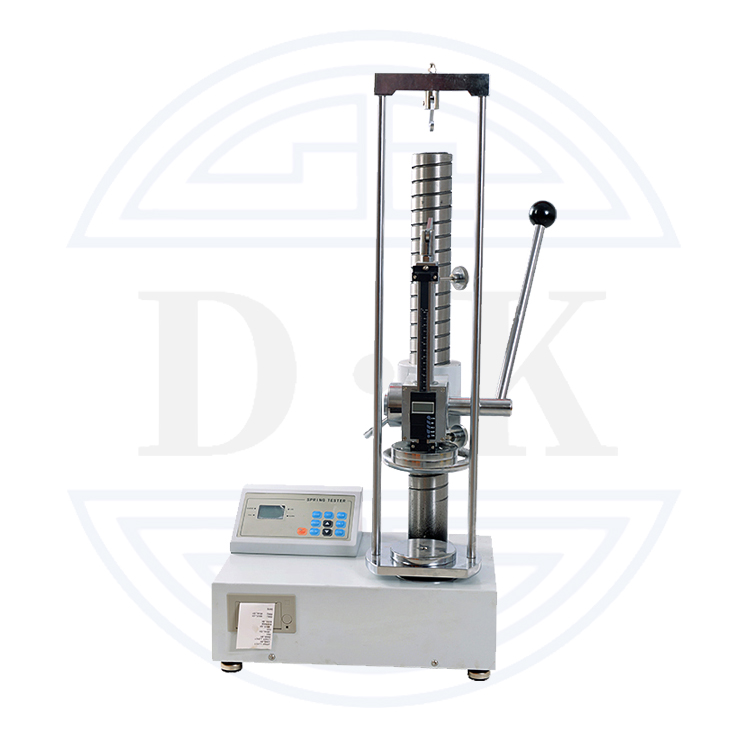

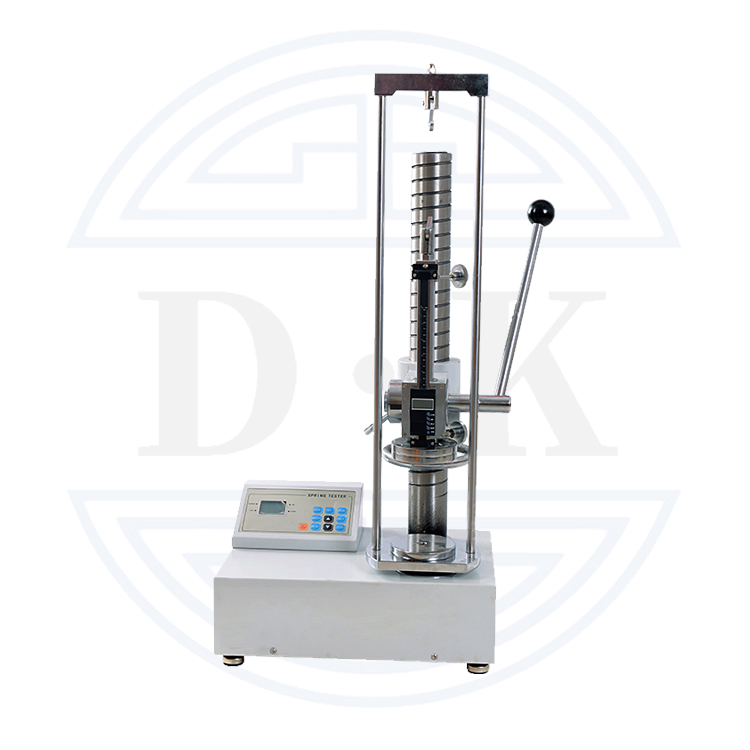

ATH Series Digital Display Spring Tester is used to test amount of deformation and characteristic
of load relation of extension and compression springs.
It can be applied to test of working load of extension and compression springs under the certain
working length. Advanced and highly integrated chip microprocessor is adopted by this machine,
which also has liquid crystal display (English) and metal enclosure.
The interference-killing feature of the system is thus greatly improved.
2.Technical Parameter:
Model (P Is Micro-printer) | ATH-1000 | ATH-2000 | ATH-3000 | ATH-5000 |
ATH-1000P | ATH-2000P | ATH-3000P | ATH-5000P |
Max. Test Load | 1000 N | 2000 N | 3000 N | 5000 N |
Min. Resolution | 0.1 N |
0.01 Kg |
0.01 Lb |
Length Of Travel Of Displacement Scale
| 150 mm |
Division Value Of Displacement Scale
| 0.01 mm |
Platen Diameter | 108 mm |
Max. Free Length Of Measurable Spring | 200 mm |
Indication Error | ±1% |
Working Temperature | 20±10℃ |
Power Supply | 1-Phase, AC 220V, 50Hz |
