Description:
1.Application:

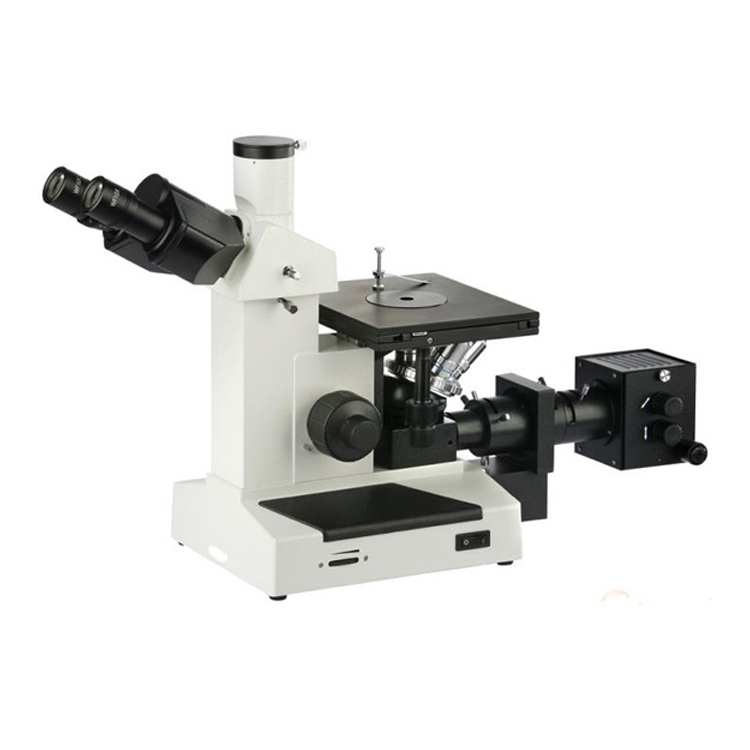

SDEKON 4XC Trinocular Inverted Metallographic Microscope is used to identify and analyze the combined
structure of various metals and alloy materials.
It is used in factories or laboratories for the identification of casting quality; raw material inspection or
metallographic analysis after material treatment; to carry out research work on some surface phenomena
such as surface spraying.
It is an effective method for metallographic analysis of steel, non-ferrous metal materials, castings, and
coatings; petrographic analysis of geology; an effective method for microscopic research on compounds
and ceramics in the industrial field.
It is an indispensable instrument for studying the organization and structure of materials in metal science
and materials science, and is also widely used in biology, medicine, teaching and other fields.
2.Technical Parameter:
Model | 4XC |
Observation Tube | Hinged Type Binocular Tube, Tilting Angle: 30° Trinocular Tube, Interpupillary Distance and Diopter Adjustable |
Total Magnification | 100X~1000X |
Eyepiece | Wide View Eyepiece 10X (Φ18mm) |
Objective Lens Converter | Four-hole Objective Lens Converter |
Objective Lens | Long Focal Length Flat Fielding Achromatic Objective Lens 10X, 20X, 40X, 100X(Oil) |
Focusing Mechanism | Coaxial Coarse And Fine Focusing Fine-tuning Grid Value: 0.002mm |
Stroke: 30mm |
Loading Table | Table Size: 200mmx152mm |
Mechanical Moving Platform | Moving Range: 15mmx15mm |
Lighting | Halogen Lamp 20W / 6V |
Color Filter | Green, Blue, Yellow |
