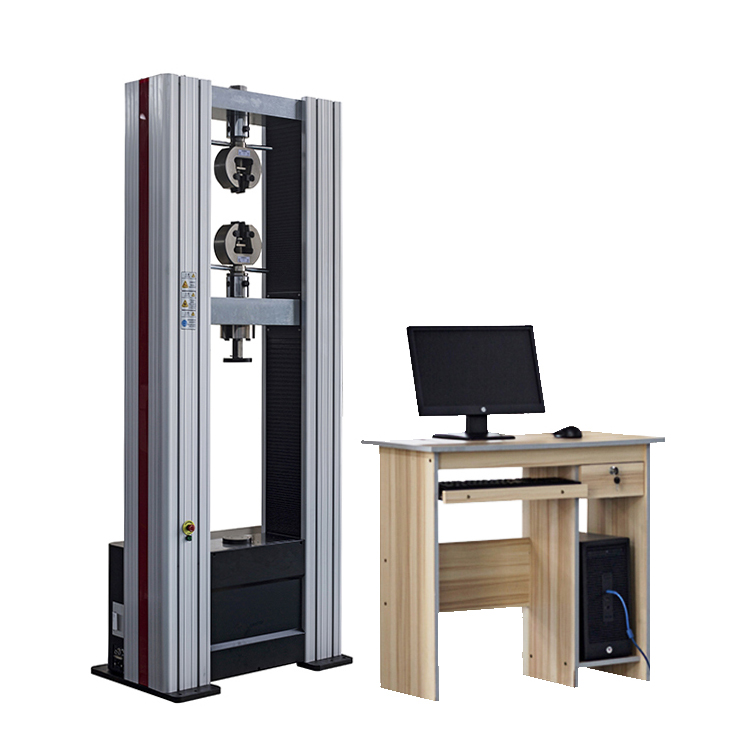

WDW-50 Computer Control Electronic Universal Testing Machine

1.Functions and Features:

WDW Series Computer Control Electronic Universal Testing Machine is mainly used for testing mechanical

performance indexes of various metals, nonmetals and composite materials such as tensile, compression,

bending, shearing, peeling, tearing, etc. The system adopts microcomputer closed-loop control, has a wide

and accurate loading speed and force measuring range, and has higher accuracy and sensitivity in the

measurement and control of load and displacement.

The equipment is suitable for manufacturing industries such as metals, adhesives, pipes, profiles, aerospace,

petrochemical industry, waterproof coiled materials, wires and cables, textiles, fibers, rubber, ceramics, food,

medical packaging, geotextiles, films, wood, paper and other manufacturing industries as well as product

quality supervision departments at all levels.

It is also suitable for teaching demonstration work in colleges and universities.

2.Technical Parameter:

Model	WDW-50
Max. Load	50 KN (5 TON)
Structure	6 Columns
Accuracy	Class 1
Testing Range	2%~100%FS
Measuring Accuracy	Better Than ±1% of The Indicator
Resolution of Effort	1/300000 of The Full Scale
Displacement Accuracy	±1%
Displacement Resolution	0.001 mm
Displacement Error	Within ±1% of Indicator
Deformation Resolution	0.001 mm
Deformation Relative Error	Within ±1%
Displacement Control Speed Range	0.001~500 mm/min
Max. Stroke Of Crosshead	1350 mm
Max. Tensile Space	800 mm
Max. Compression Space	800 mm
Max. Test Width	420 mm
Tensile Test Round Jaw	Φ 4~20 mm
Tensile Test Flat Jaw	0~20 mm
Compression Plate	Φ 100 mm

Computer Control Type
