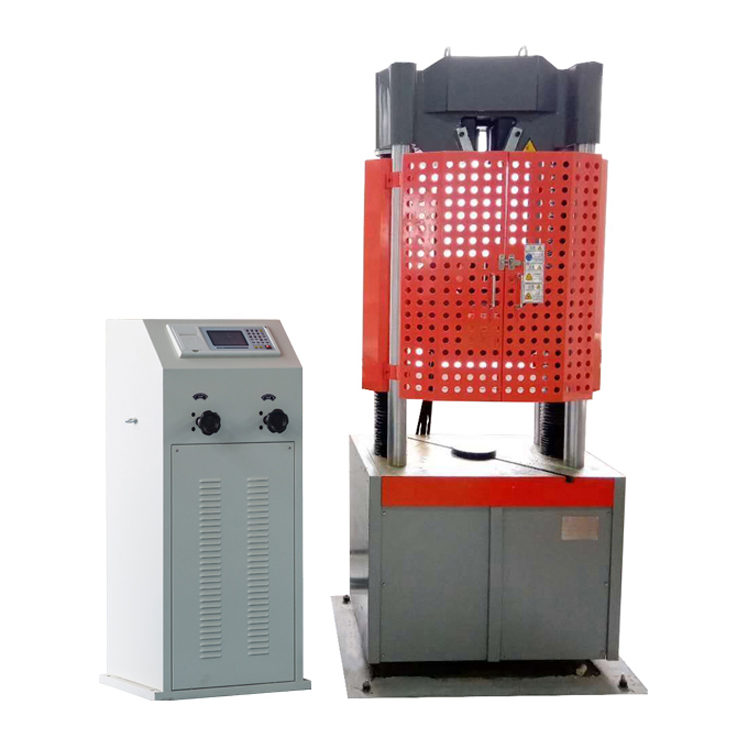

WES-1000D Digital Display Hydraulic Universal Testing Machine

1.Product Description:

WES-1000D Digital Display Hydraulic Universal Testing Machine is mainly used for mechanical properties testing

of tensile,compression, bending and shearing of metal materials, to add simple accessories and devices, to test

concrete, concrete, rubber and other products.

The tensile space is located above the main machine. The compression and bending test space is located between

the lower beam and the workbench below the mainframe.

The test machine adopts convenient manual valve for open-loop test control, drives precision gap seal hydraulic

cylinder, completes tensile, compression, bending and other performance tests on the sample.

The operation is direct, fast and efficient, and meets the requirements of national standards.

2.Technical Parameter:

Model		WES-1000D
Structure		6 Columns
Max. Test Force		1000 kN
Test Force Measurement Range		2%~100%
Test Force Indication Relative Error		1% Of The Indicated Value
Max. Piston Stroke		200 mm
Max. Moving Speed Of The Piston		80 mm/min
Test Space Adjustment Speed		150 mm/min
Max. Tensile Test Space		620 mm
Max. Compression Test Space		550 mm
Column Clearance		540 mm
Clamping Method		Hydraulic Automatic Clamping
Tensile Fixture	Round Sample Clamping Range	Φ6-60 mm
	Flat Sample Clamping Thickness Range	0-40 mm
	Flat Sample Clamping Width	80 mm
Compression Fixture	Compression Plat Size	Φ205 mm
3 Point Of Bending Fixture	Roller Diameter	Φ40 mm
	Span For Roller	450 mm
	Roller Width	140 mm
	Allowable Bending Length	100 mm

Digital Display Type
