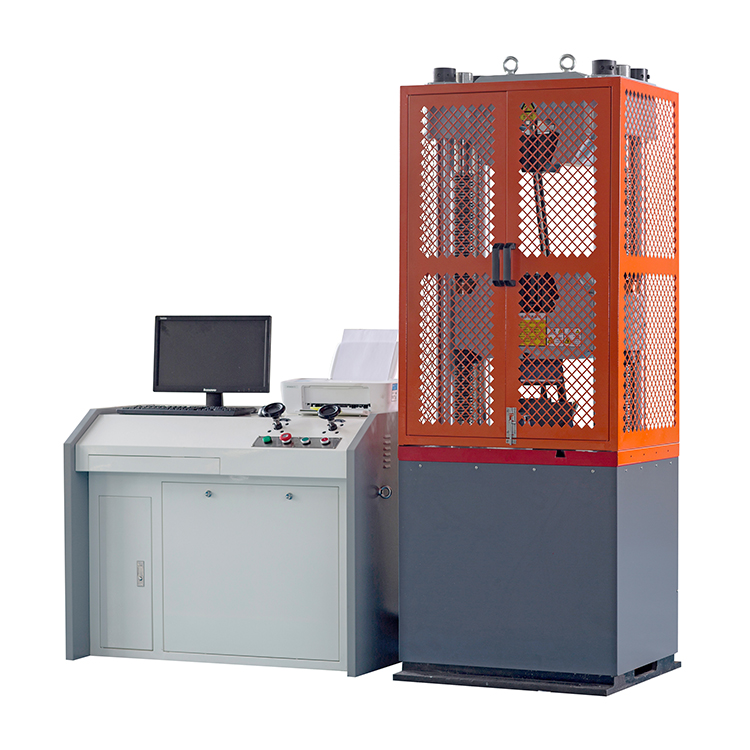

WEW-600D Computer Display Hydraulic Universal Testing Machine




EMAIL: james@sdekon.com

SKYPE: james@sdekon.com

WECHAT: +86-18660816838

WHATSAPP: +86-18660816838

MOBILE PHONE: +86-18660816838

1.Product Description:

WEW-600D Computer Display Hydraulic Universal Testing Machine adopts the structure of the main engine with

the lower cylinder, which is mainly used for tensile, compression and bending tests of metal materials, non-metal

materials, product parts, components, structural parts and standard parts.

This series of testing machines can also do tensile, compressive and bending tests of materials in this environment

if equipped with environmental devices. For example, high temperature tensile test, low temperature tensile test

and compression test.

Applicable to iron and steel, metallurgy, building materials, quality inspection centers, water conservancy and

hydropower, roads and bridges, scientific research institutes, colleges and universities, mechanics and other factories,

mining enterprises and testing scientific research institutions.


2.Technical Parameter:

Model

WEW-600D

Structure

6 Columns

Max. Test Force

600 kN

Test Force Measurement Range

2%~100%

Test Force Indication Relative Error

1% Of The Indicated Value

Max. Piston Stroke

150 mm

Max. Moving Speed Of The Piston

80 mm/min

Test Space Adjustment Speed

120 mm/min

Max. Tensile Test Space

650 mm

Max. Compression Test Space

600 mm

Column Clearance

480 mm

Clamping Method

Hydraulic Automatic Clamping

Tensile Fixture

Round Sample Clamping Range

Φ6-40 mm

Flat Sample Clamping Thickness Range

0-30 mm

Flat Sample Clamping Width

80 mm

Compression Fixture

Compression Plat Size

Φ150 mm

3 Point Of

Bending Fixture

Roller Diameter

Φ30 mm

Span For Roller

450 mm

Roller Width

140 mm

Allowable Bending Length

100 mm
