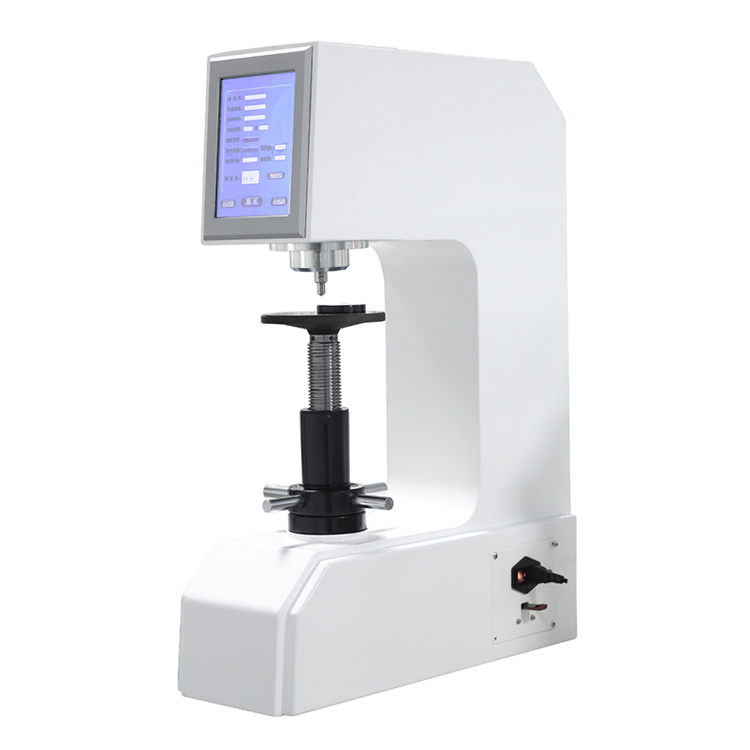

HR-150-45DX Touch Screen Digital Display Rockwell and Superficial Rockwell Hardness Tester

1.Application:

HR-150-45DX Touch Screen Digital Display Rockwell and Superficial Rockwell Hardness Tester uses

electronic electric loading,high-precision sensors,has a unique closed-loop control system.

Touch screen interface, easy to operate, can select hardness scale directly, force values will automatic

change in the test parameters.

The powerful of Data Processing Function, including: HR, HB, HV hardness conversion, set qualified

range, overrun automatic alarm, can enter information of tester and sample name.

More samples and test information, measurement data will save as EXCEL format in U disk, that will

easy to edit and process.

2.Technical Parameter:

Model	HR-150-45DX
Rockwell Initial Test Force	10Kgf (98.07N)
Rockwell Total Test Force	60Kgf (588N); 100Kgf (980N); 150Kgf (1471N)
Superficial Rockwell Initial Test Force	3Kgf (29.42N)
Superficial Rockwell Total Test Force	15Kgf (147.1N); 30Kgf (294.2N); 45Kgf (441.3N)
Hardness Value Resolution	0.1 HR
Test Force Error	＜1%
Dwell Time	0~99 s
Max. Height Of Sample	200 mm
Distance From Indenter To The Wall	200 mm
Conversion Scale	Rockwell, Brinell, Vickers
Data Display Output	Touch Screen Display Readout, By EXCEL Format To Save In The U Disk
Standards Compliant	BSEN 6508, ISO 6508, ASTM E18, GB/T230
