Description:
1.Applications:

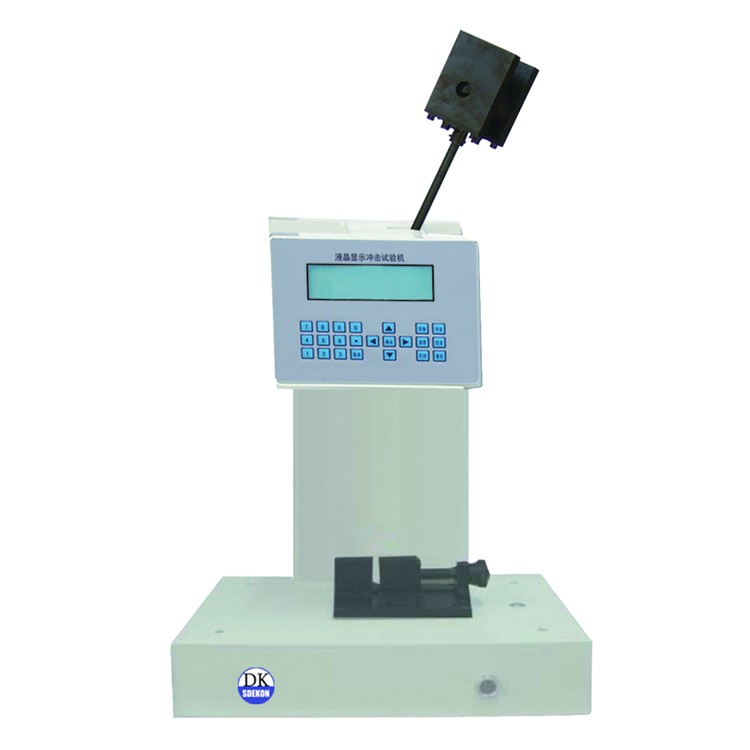

SDEKON XJUY-5.5 Digital Display Plastic Izod Impact Testing Machine is single-chip microcomputer control,
digital display type. Its Man-Machine dialogue very convenient, high precision, automatic display the impact
energy, automatic calculation the impact strength, can automatic calculate the average impact strength of
the entire set of samples, can delete data arbitrarily. This machine is electric release hammer, also installed
the micro-printer, can print the test results.
2.Main Specifications:
Model | XJUY-5.5 |
Pendulum Energy | 1 J | 2.75 J | 5.5 J |
Impact Speed | 3.5m/s |
Pendulum Impact Accuracy | 0.0001 J |
Pendulum Angle | 160° |
Distance Between Pendulum Center And Sample Center | 322mm |
Distance Of The Impact Blade To The Upper Plane Of Jaw | 22mm |
Fillet Radius Of The Blades | R=0.8mm |
