1.Applications:

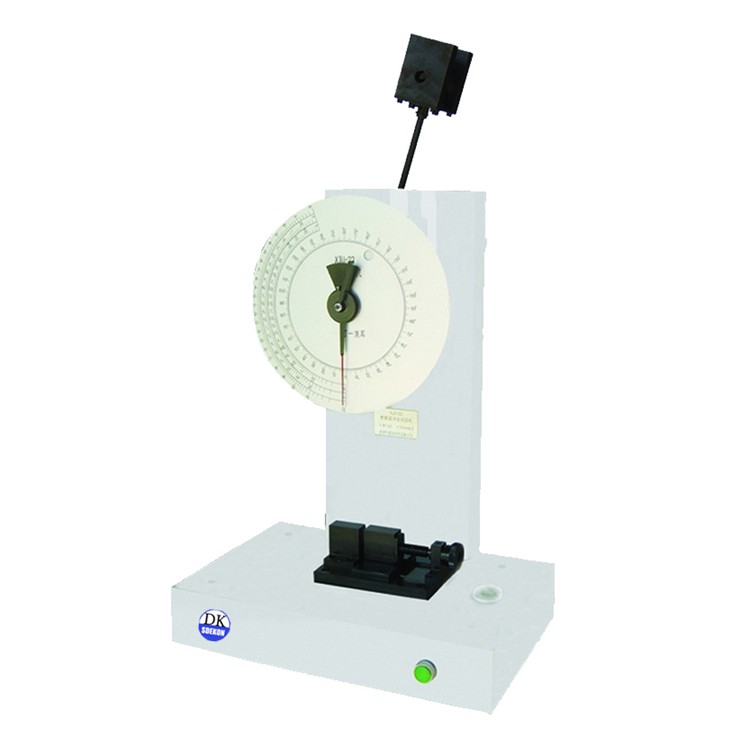

SDEKON XJU-22 Dial Display Plastic Izod Impact Testing Machine is pointer dial, electric hammer block release.
Application Range: Hard Plastic, Fiber Reinforced Composite Materials, Glass Fiber Reinforced Plastic, Ceramic,
Asbestos etc. Nonmetal Materials For Impact Test.
2.Main Specifications:
Model | XJU-22 | ||
Pendulum Energy | 5.5 J | 11 J | 22 J |
Impact Speed | 3.5m/s | ||
Energy Accuracy | 0.05 J | ||
Pendulum Angle | 160° | ||
Distance Between Pendulum Center And Sample Center | 322mm | ||
Distance Of The Impact Blade To The Upper Plane Of Jaw | 22mm | ||
Fillet Radius Of The Blades | R=0.8mm |
