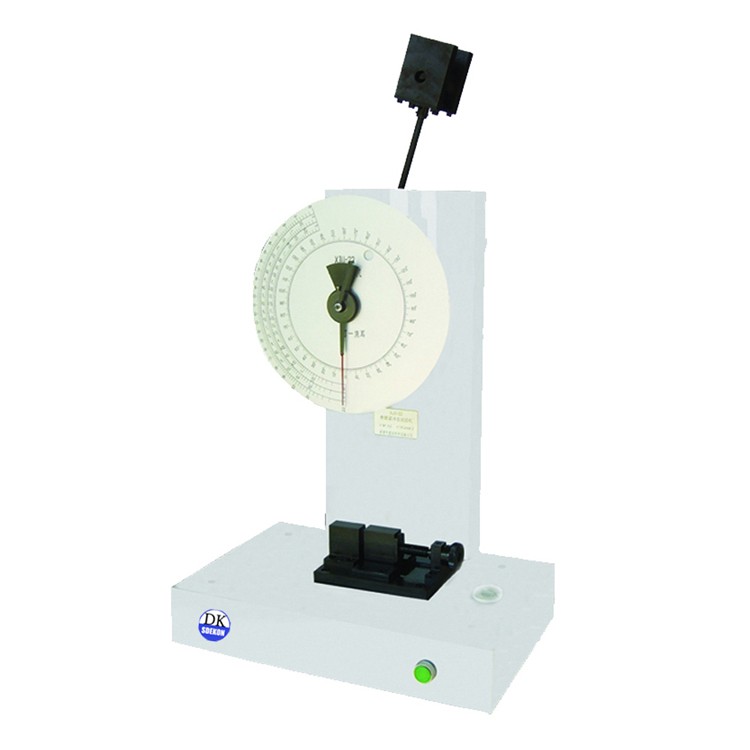

SDEKON XJU-5.5 Dial Display Plastic Izod Impact Testing Machine
EMAIL: james@sdekon.com
SKYPE: james@sdekon.com
WECHAT: +86-18660816838
WHATSAPP: +86-18660816838
MOBILE PHONE: +86-18660816838
EMAIL: james@sdekon.com
SKYPE: james@sdekon.com
WECHAT: +86-18660816838
WHATSAPP: +86-18660816838
MOBILE PHONE: +86-18660816838
1.Applications:
SDEKON XJU-5.5 Dial Display Plastic Izod Impact Testing Machine is pointer dial, electric hammer block release.
Application Range: Hard Plastic, Fiber Reinforced Composite Materials, Glass Fiber Reinforced Plastic, Ceramic,
Asbestos etc. Nonmetal Materials For Impact Test.
2.Main Specifications:
Model | XJU-5.5 | ||
Pendulum Energy | 1 J | 2.75 J | 5.5 J |
Impact Speed | 3.5m/s | ||
Energy Accuracy | 0.01 J | ||
Pendulum Angle | 160° | ||
Distance Between Pendulum Center And Sample Center | 322mm | ||
Distance Of The Impact Blade To The Upper Plane Of Jaw | 22mm | ||
Fillet Radius Of The Blades | R=0.8mm |
