1.Applications:

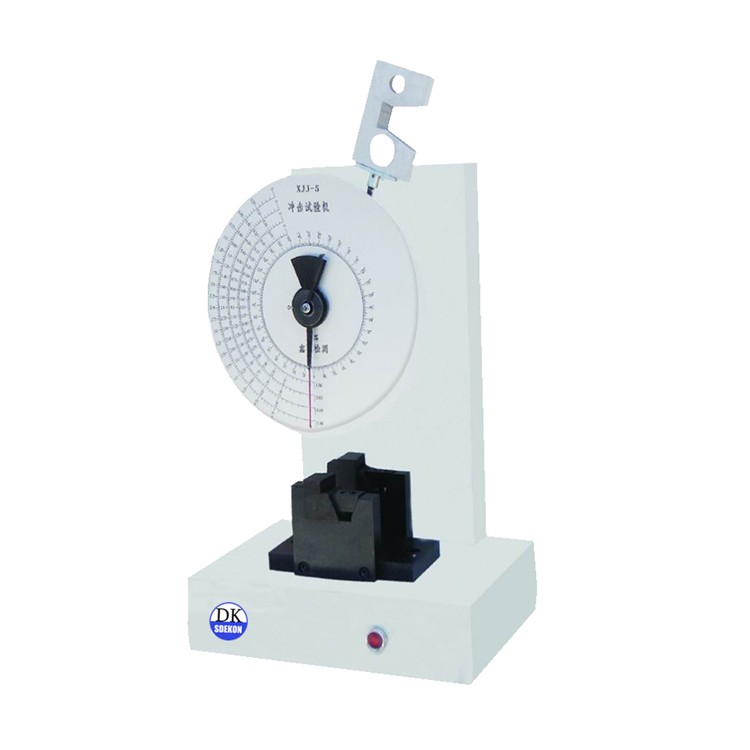

SDEKON XJJ-5 Dial Display Plastic Charpy Impact Testing Machine is pointer dial, electric hammer block release.
Application Range: Hard Plastic, Fiber Reinforced Composite Materials, Glass Fiber Reinforced Plastic, Ceramic,
Asbestos etc. Nonmetal Materials For Impact Test.
2.Main Specifications:
Model | XJJ-5 | |||
Pendulum Energy | 1 J | 2 J | 4 J | 5 J |
Impact Speed | 2.9 m/s | |||
Pendulum Angle | 160° | |||
Distance Between Pendulum Center And Sample Center | 221mm | |||
Fillet Radius Of Support Blades | R=1mm | |||
Impact Blades Angle | 30° | |||
Fillet Radius Of Impact Blades | R=2mm |
