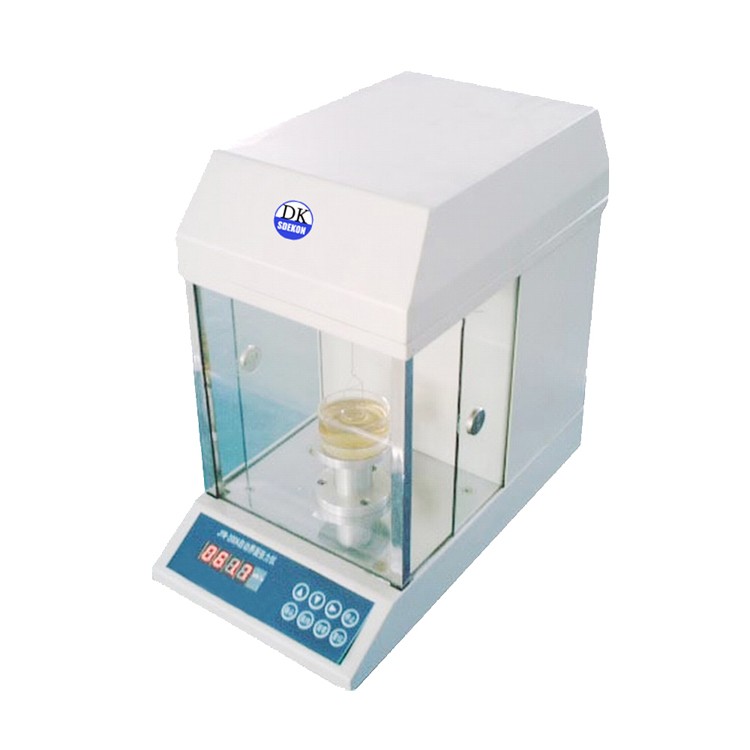

SDEKON JYW-200A Automatic Interface Tensiometer
EMAIL: james@sdekon.com
SKYPE: james@sdekon.com
WECHAT: +86-18660816838
WHATSAPP: +86-18660816838
MOBILE PHONE: +86-18660816838
1.Application:
SDEKON JYW-200A Automatic Interface Tensiometer use physical methods instead of chemical methods.
This device has the peak hold function, the liquid film rupture automatic stop function, the enter liquid level
automatic stop function, the electronic automatic adjustment zero function, can automatic calculate various
liquid surfaces and actual tension values of the interface, and automatic display the results, and the one-key
adjustment zero function.
2.Technical Parameter:
Model | JYW-200A |
Measuring Range | 0-199.9 mN/m |
Resolution | 0. 1 mN/m |
Zero Drift | ≤0.1 mN/m (Within 15 min) |
Relative Error Of Indication | Not More Than ±2% |
Reproducibility Error Of Indication | Not More Than 2% |
Sample Holder Stroke | 25 mm |
Sample Holder Lifting Speed | 15 mm/min±2 mm/min |
Sample Cup Inner Diameter | 56 mm |
Sample Cup Capacity | 60 m L |
Platinum Wire Radius | 0.3 mm |
Platinum Wire Circumference | 60 mm |
Ambient Temperature | Room Temperature 10℃-35℃ |
