1.Application:

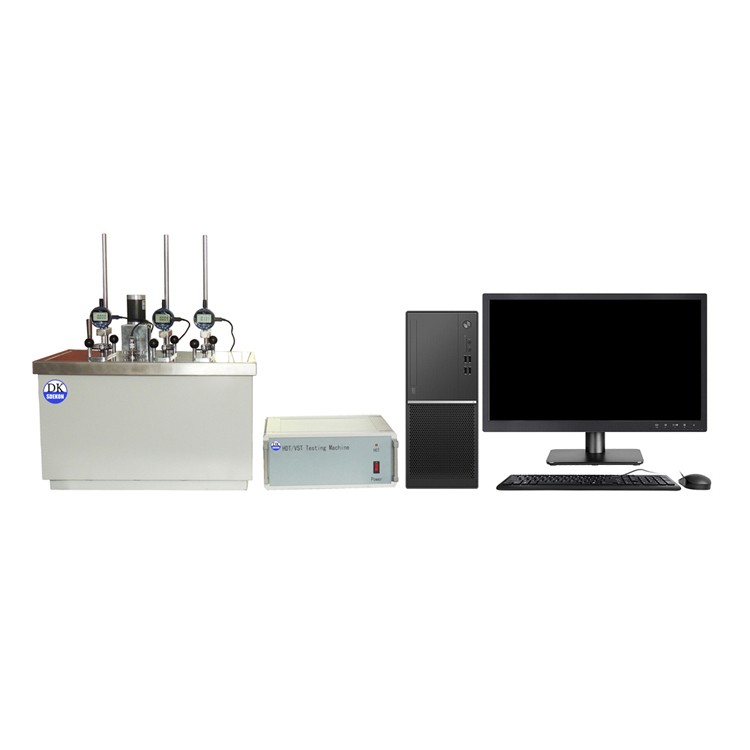

SDEKON XWB-300E Computer Control Thermal Deformation Vicat Softening Point Temperature Tester
is applicable to GB/T1633, GB/T1634, ISO75 and other standards. It use displacement sensor to replace
the old dial gauge, to measure the shape variable, and automatic to collect the test data.
Computer control, Windows operating system, clear interface, stable operation; can input customer
information, automatic to calculate load, can store 5000 experimental data, very easy to check.
Equipped with an external printer.
2.Technical Parameter:
Model | XWB-300E |
Control Way | Computer Control |
Display Way | Three-way Curve Display |
Structure | Table Type |
Temperature Control Range | Room Temperature ~ 300°C |
Heating Rate | 120±10℃/h; 50±5℃/h |
Temperature Accuracy | ±0.5℃ |
Temperature Resolution | 0.01℃ |
Deformation Range | 0-3 mm |
Deformation Accuracy | 0.001 mm |
Load Range | 0.75-49.03 N |
Test Span | 60-120 mm Continuously Adjustable |
Cooling Method | Natural Cooling, Water Cooling |
Test Station | 3 Stations |
Heating Medium | Methyl Silicone Oil |
