1.Application:

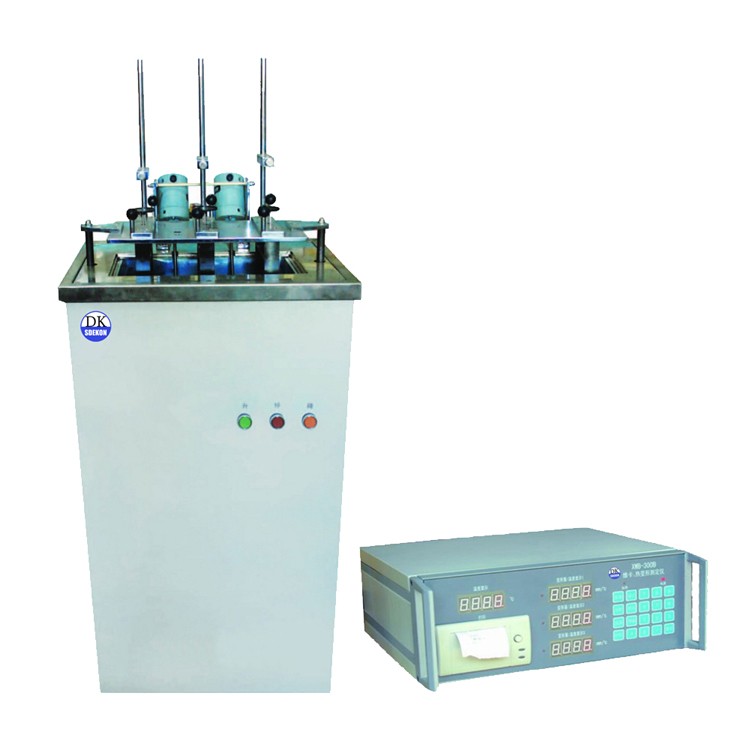

SDEKON XWB-300B Digital Display Thermal Deformation Vicat Softening Point Temperature Tester
is applicable to GB/T1633, GB/T1634, ISO75 and other standards. It use the displacement sensor to
replace the old dial gauge, to measure the shape variable, and automatic to collect the test data.
It is equipped with a built-in micro-printer.
2.Technical Parameter:
Model | XWB-300B |
Control Way | Single Chip Control |
Display Way | Three-way Digital Display |
Structure | Floor-standing Type |
Temperature Control Range | Room Temperature ~ 300°C |
Heating Rate | 120±10℃/h; 50±5℃/h |
Temperature Accuracy | ±1℃ |
Temperature Resolution | 0.1℃ |
Deformation Range | 0-2.5 mm |
Deformation Accuracy | 0.01 mm |
Load Range | 0.75-49.03 N |
Test Span | 60-120 mm Continuously Adjustable |
Test Stand | Automatic Lifting |
Cooling Method | Natural Cooling, Water Cooling |
Test Station | 3 Stations |
Heating Medium | Methyl Silicone Oil |
