1.Application:

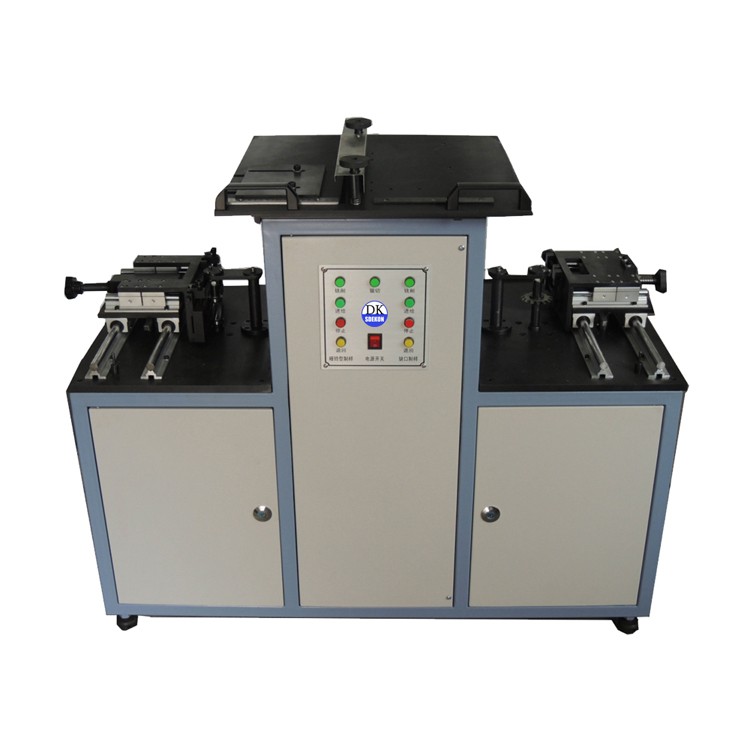

SDEKON WZY-240 Universal Preparation Machine mainly used in the processing standard specimen
of plastic, organic glass etc. non-metal materials, these standard specimen use for impact, tensile,
compression, thermal performance test and so on.
It can be cut, milling notch, milling curvilinear type, dumbbell type and plane processing.
The milling notch specimen use to impact test, the dumbbell type specimen use to tensile test.
2.Technical Parameter:
Model | WZY-240 | |
Max. Cutting Width | 200 mm | |
Max. Cutting Thickness | 20 mm | |
Max. Milling Surface Length | 200 mm | |
Saw Blade For Cutting (Grinding Wheel) | 200*32*2 mm | |
Length Of Knife Used To Mill Notch | 50 mm | |
A TYPE: 45°±1°, R0.25±0.05mm | ||
Knife Specification Of Processing Dumbbell Type And Plane | 27*12*35 mm | |
Each Part Of Spindle Speed | Cut Off Part Of The Spindle Speed | 2800 r/min |
Milling Notch Part Of The Spindle Speed | 1400 r/min | |
Milling Dumbbell Type And Plane Parts Of The Spindle Speed | 1430 r/min | |
Milling Feed Speed | 180 mm/min | |
