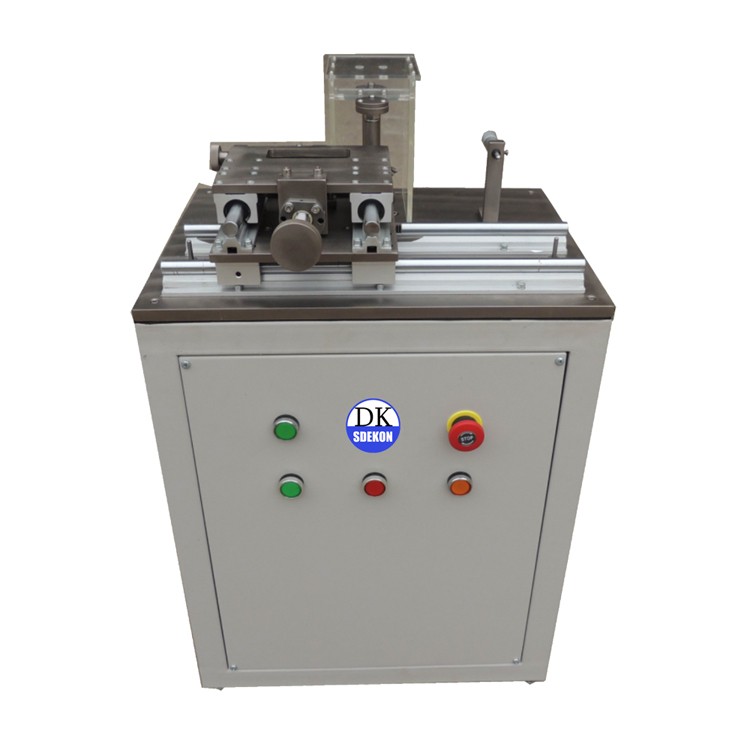

SPZQK-20 Automatic Impact Specimen Notch Preparation Machine

1.Application:SDEKON SPZQK-20 Automatic Impact Specimen Notch Preparation Machine mainly used to process the&n

One Year Warranty

Prompt Delivery

1.Application:

SPZQK-20 Automatic Impact Specimen Notch Preparation Machine mainly used to process

the standard specimen notching of plastic, organic glass and other non-metallic materials.

These standard notching specimen are use for impact properties test.

It is automatic mode to process the notching specimen, meet standard of ISO179-2000,

ISO180-2001, GB1043-2008, GB1843-2008 and so on.

2.Technical Parameter:

Model	SPZQK-20
Milling Cutter Diameter	Φ 60 mm
Cutter Shape and Dimensions	A TYPE: 45°±1°, R0.25±0.05mm
Workbench Stroke	100 mm
Feed Rate	30 mm
Milling Cutter Rotation Speed	1400 r/min
