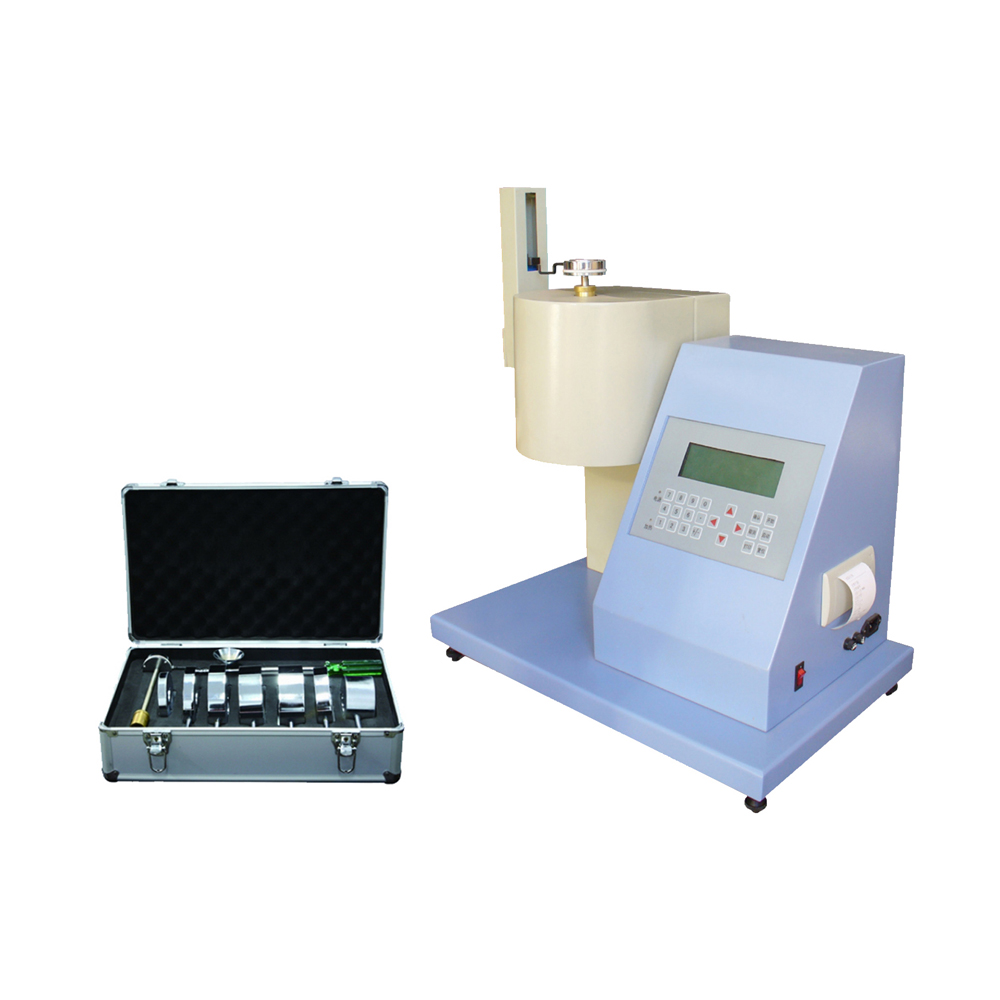

SDEKON XNR-400D Digital Display Plastic Melt Flow Index Tester
EMAIL: james@sdekon.com
SKYPE: james@sdekon.com
WECHAT: +86-18660816838
WHATSAPP: +86-18660816838
MOBILE PHONE: +86-18660816838
EMAIL: james@sdekon.com
SKYPE: james@sdekon.com
WECHAT: +86-18660816838
WHATSAPP: +86-18660816838
MOBILE PHONE: +86-18660816838
1.Applications:
SDEKON XNR-400D Digital Display Plastic Melt Flow Index Tester meet GB/T3682-2000, ASTM D1238-98,
JB/T5456 and ISO1133 standards; used to determination of the melt mass flow rate (MFR, Unit: g/10min)
and the melt volume flow rate (MVR, Unit: cm3/10min) of thermoplastics.
Using automatic sampling to determination of melt mass flow rate, balance weighing way.
To measure the melt volume flow rate is through the displacement sensor and automatic timing system,
first to measure to time of the piston moves a specified distance, then calculate the volume flow rate
according to the formula. The final result of two determination methods is displayed on the LCD screen
and can output by the micro-printer.
2.Main Specification:
Model | XNR-400D |
Test Method | Melt Mass Flow Rate (MFR) Melt Volume Flow Rate (MVR) |
Temperature Range | Room Temperature - 450℃ |
Constant Temperature Accuracy | ± 0.2℃ |
Temperature Resolution | 0.1℃ |
Display Method | Digital Display |
Scraped Material Way | Automatic / Manual |
Displacement Range | 0.01 - 50mm |
Displacement Accuracy | ± 0.01 mm |
Displacement Resolution | 0.01 mm |
Timing Range | 0.1 ~ 999s |
Timing Accuracy | 0.1s |
Cut Material Way | Automatic and Manual Cut Material Way |
