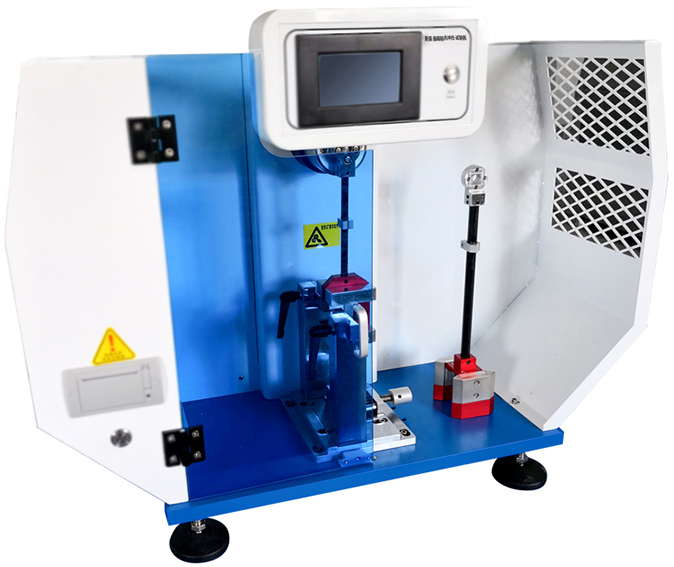

DK-XJL-22/50D Touch Screen Digital Display Charpy & Izod Combined Impact Testing Machine

1.Product Introduction:

DK-XJL-22/50D Touch Screen Digital Display Charpy & Izod Combined Impact Testing Machine is a new multifunctional

Charpy and Izod integrated impact testing machine. It mainly used for the determination of the impact toughness of

non-metallic materials such as hard thermoplastic molding and extrusion materials, hard thermoset molding materials,

and fiber-reinforced thermoset and thermoplastic composite materials.

This machine is easy to disassemble the fixture and sample holder.

The Charpy and Izod test methods are switched automatically.

It is easy to use, simple to operate and has high test accuracy.

It is a commonly used equipment for quality inspection in scientific research institutions, colleges and universities, and

non-metallic material manufacturers.

2.Technical Parameter:

Model			DK-XJL-22/50D
Pendulum Energy		CHARPY	1 J、2 J、4 J、5 J、7.5 J、15 J、25 J、50 J
		IZOD	2.75 J、5.5 J、11 J、22 J
Pendulum Force Moment		CHARPY	1J MN = 0.53590 N.m; 2J MN = 1.07180 N.m; 4J MN = 2.14359 N.m; 5J MN = 2.67949 N.m; 7.5J MN = 4.01929 N.m; 15J MN = 8.0385 N.m; 25J MN = 13.3976 N.m; 50J MN = 26.7952 N.m
		IZOD	2.75J MN = 1.4737 N.m; 5.5J MN = 2.9474 N.m; 11J MN = 5.8948 N.m; 22J MN = 11.7897 N.m
Display Mode			4.3-Inch Color Touch Screen
Energy Accuracy			0.01 J
Impact Velocity			2.9 m/s, 3.8 m/s, 3.5 m/s
Pendulum Pre-Evalution Angle			150°
CHARPY	Distance Between Pendulum Center To Sample Center		395 mm
	Jaws Support Spacing		40 mm、60 mm、70 mm、95 mm
	Fillet Radius Of Impact Blade		R = 2 mm ± 0.5 mm
	Impact Blade Angle		30°±l°
IZOD	Distance Between Pendulum To The Impact Blade		335 mm
	Distance Between Impact Blade To The Upper Plane Of Jaws		22 mm ± 0.2 mm
	Fillet Radius Of Impact Blade		R = 0.8 ± 0.2 mm
	Impact Blade Angle		75±1°
Angle Sensor			Original Imported OMRON Encoder, Angle Accuracy 0.01°
Output Method			Micro-printer Printout
