Description:
1.Product Introduction:

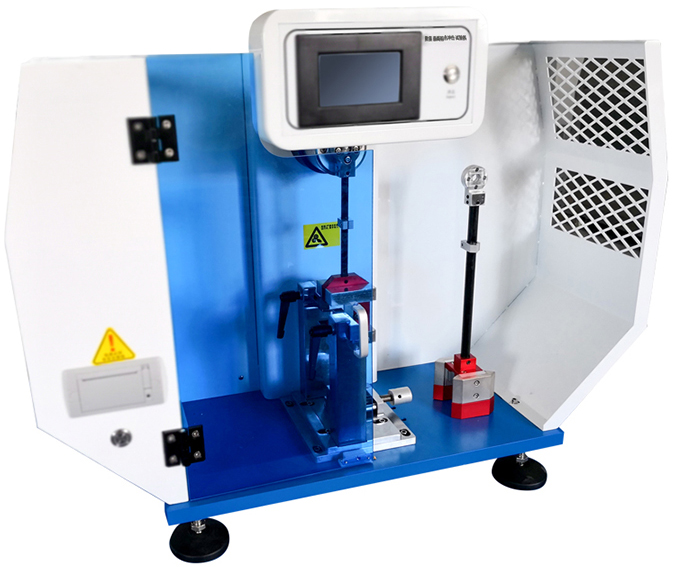

DK-XJL-5/5.5D Touch Screen Digital Display Charpy & Izod Combined Impact Testing Machine is a new multifunctional
Charpy and Izod integrated impact testing machine.
It mainly used for the determination of the impact toughness of non-metallic materials such as hard thermoplastic
molding and extrusion materials, hard thermoset molding materials, and fiber-reinforced thermoset and thermoplastic
composite materials. This machine is easy to disassemble the fixture and sample holder.
The Charpy and Izod test methods are switched automatically.
It is easy to use, simple to operate and has high test accuracy.
It is a commonly used equipment for quality inspection in scientific research institutions, colleges and universities, and
non-metallic material manufacturers.
2.Technical Parameter:
Model | DK-XJL-5/5.5D |
Pendulum Energy | CHARPY | 1 J、2 J、4 J、5 J |
IZOD | 2.75 J、5.5 J |
Pendulum Force Moment | CHARPY | 1J MN = 0.53590 N.m; 2J MN = 1.07180 N.m 4J MN = 2.14359 N.m; 5J MN = 2.67949 N.m |
IZOD | 2.75J MN = 1.4737 N.m; 5.5J MN = 2.9474 N.m |
Display Mode | 4.3-Inch Color Touch Screen |
Energy Accuracy | 0.01 J |
Impact Velocity | 2.9 m/s, 3.5 m/s, 3.8 m/s |
Pendulum Pre-Evalution Angle | 150° |
CHARPY | Distance Between Pendulum Center To Sample Center | 230 mm |
Jaws Support Spacing | 40 mm、60 mm、70 mm、95 mm |
Fillet Radius Of Impact Blade | R = 2 mm ± 0.5 mm |
Impact Blade Angle | 30°±l° |
IZOD | Distance Between Pendulum To The Impact Blade | 335 mm |
Distance Between Impact Blade To The Upper Plane Of Jaws | 22 mm ± 0.2 mm |
Fillet Radius Of Impact Blade | R = 0.8 ± 0.2 mm |
Impact Blade Angle | 75±1° |
Angle Sensor | Original Imported OMRON Encoder, Angle Accuracy 0.01° |
Output Method | Micro-printer Printout |
