Description:
1.Product Introduction:

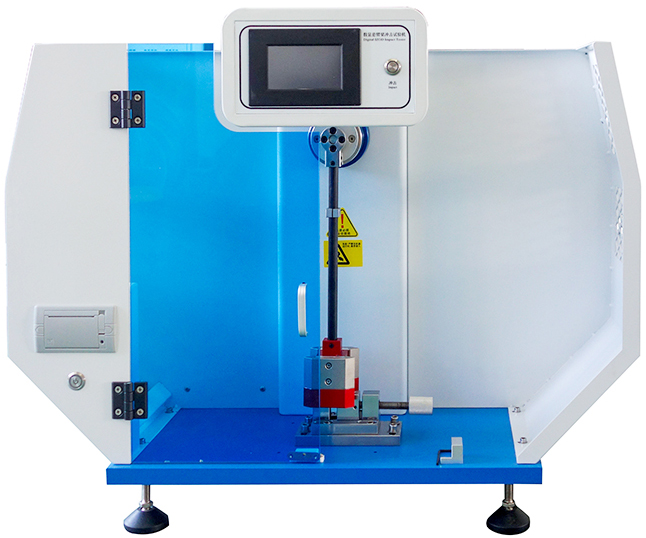

DK-XBL Series Touch Screen Digital Display Izod Impact Testing Machine is used to measure the impact
toughness of non-metallic materials such as plastics, reinforced nylon, fiberglass, ceramics, cast stone,
plastic electrical appliances, and insulating materials.
This machine adopts high-precision encoder technology and has the characteristics of high accuracy,
good stability and large measurement range.
Digital measurement displays the impact strength and average value, automatic correction of energy loss,
printing test report and other functions.
It is an instrument with simple structure, easy operation and high testing accuracy.
It is a commonly used equipment for quality inspection in scientific research institutions, colleges and
universities, and non-metallic material manufacturers.
2.Test Standards:
ISO180-2000 | PLASTICS - DETERMINATION OF IZOD IMPACT STRENGTH OF HARD MATERIALS |
GB/T1843-2008 | IZOD IMPACT TEST METHOD FOR RIGID PLASTICS |
JB/T8761-1998 | PLASTIC IZOD IMPACT TESTING MACHINE |
ASTM D256-2010 | TEST METHOD FOR DETERMINING PLASTIC IZOD PENDULUM IMPACT STRENGTH |
3.Technical Parameter:
Model | DK-XBL-2.75/22D |
Pendulum Energy | 2.75 J、5.5 J、11 J、22 J |
Pendulum Force Moment | 2.75J MN = 1.4737 N.m; 5.5J MN = 2.9474 N.m; 11J MN = 5.8948 N.m; 22J MN = 11.7897 N.m |
Display Mode | 4.3-Inch Color Touch Screen |
Energy Accuracy | 0.01 J |
Impact Velocity | 3.5 m/s |
Pendulum Pre-Evalution Angle | 150° |
Distance Between Pendulum To The Impact Blade | 335 mm |
Distance Between Impact Blade To The Upper Plane Of Jaws | 22 mm ± 0.2 mm |
Fillet Radius Of Impact Blade | R = 0.8 ± 0.2 mm |
Impact Blade Angle | 75±1° |
Angle Sensor | Original Imported OMRON Encoder, Angle Accuracy 0.01° |
Output Method | Micro-printer Printout |
