Description:
1.Product Introduction:

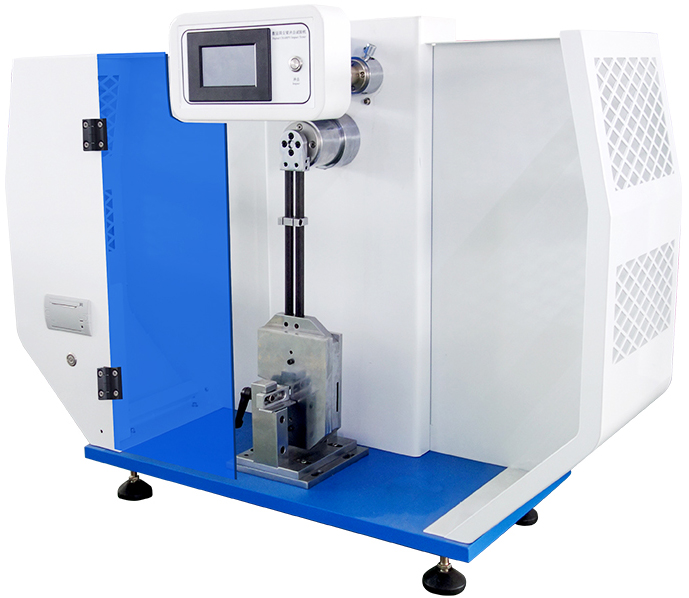

DK-JZL Series Touch Screen Digital Display Charpy Impact Testing Machine is mainly used for the determination
of the impact toughness of non-metallic materials such as hard plastics, reinforced nylon, glass fiber reinforced
plastics, ceramics, cast stones, and electrical insulating materials.
It adopts high-precision encoder technology and has the characteristics of high accuracy, good stability and
large measurement range.
Digital measurement displays the impact strength and average value, automatic correction of energy loss, printing
test report and other functions.
It is an instrument with simple structure, easy operation and high testing accuracy.
It is a commonly used equipment for quality inspection in scientific research institutions, colleges and universities,
and non-metallic material manufacturers.
2.Test Standards:
ISO179-2000 | PLASTICS - DETERMINATION OF IMPACT STRENGTH OF CHARPY OF HARD MATERIALS |
GB/T1043-2008 | IMPACT TEST METHOD FOR CHARPY OF RIGID PLASTICS |
JB/T8762-1998 | PLASTIC CHARPY IMPACT TESTING MACHINE |
GB/T 18743-2002 | THERMOPLASTIC PIPES FOR FLUID TRANSPORTATION - SUPPORTED BEAM IMPACT TEST METHOD (APPLICABLE TO PIPE PARTS) |
3.Technical Parameter:
Model | DK-JZL-1/50D |
Pendulum Energy | 1 J、2 J、4 J、5 J、7.5 J、15 J、25 J、50 J |
Pendulum Force Moment | 1J MN = 0.53590 N.m; 2J MN = 1.07180 N.m; 4J MN = 2.14359 N.m; 5J MN = 2.67949 N.m; 7.5J MN = 4.01929 N.m; 15J MN = 8.0385 N.m; 25J MN = 13.3976 N.m; 50J MN = 26.7952 N.m |
Display Mode | 4.3-Inch Color Touch Screen |
Energy Accuracy | 0.01 J |
Impact Velocity | 2.9 m/s AND 3.8 m/s |
Pendulum Pre-Evalution Angle | 150° |
Distance Between Pendulum Center To Sample Center | 230 mm AND 395 mm |
Jaws Support Spacing | 40 mm、60 mm、70 mm、95 mm |
Fillet Radius Of Supporting Blade | R = 1 mm |
Fillet Radius Of Impact Blade | R = 2 mm ± 0.5 mm |
Impact Blade Angle | 30°±l° |
Angle Sensor | Original Imported OMRON Encoder, Angle Accuracy 0.01° |
Output Method | Micro-printer Printout |
