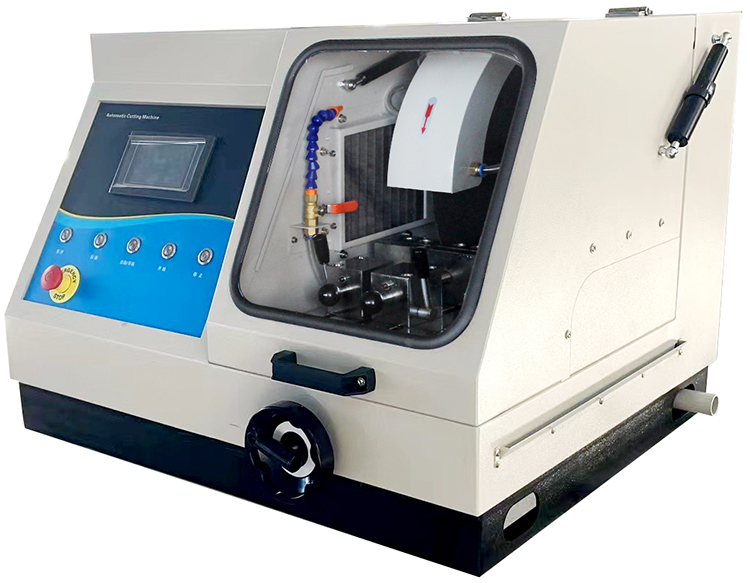

Q-100B Touch Screen Digital Display Manual And Automatic Metallographic Sample Cutting Machine

1.Application:

Q-100B Touch Screen Digital Display Manual And Automatic Metallographic Sample Cutting Machine is composed

of the body, electric control box, cutting room, motor, cooling system, cutting wheel and other components.

This machine cools the sample through the cooling system to prevent the sample from overheating and burning the

tissue during the cutting process.

The machine is divided into manual cutting and automatic cutting.

The large-volume cutting room is more convenient for cutters to use.

It is one of the necessary sample preparation equipment for metallographic experiments in colleges and universities,

factories and enterprises.

2.Technical Parameter:

Model	Q-100B
Max. Cutting Diameter	Φ100 mm (Pipe)
Spindle Speed	2800 r/min
Cutting Wheel Specification	Φ3502.5Φ32 mm
Platform Moves In The Y Direction	275 mm
Cutting Table Size	280*310 mm
Cutting Chamber Housing	Steel Plate
Feed Depth Tracking	LCD Digital Display
Blessing Table Specifications	The Fixture Table Is Divided Into Left And Right, And The Central Cutting Edge
Cutting Method	Manual Cut AND Auto Cut
Delivery Method	Arbitrary Adjustment
Cutting Speed	Up To 1 mm/s
Automatic Cutting Method	Intermittent Cutting AND Continuous Cutting
Feed Distance	Set As Needed
Reset Method	Automatic Reset
Cooling System	Automatic
