Description:
1.Application:

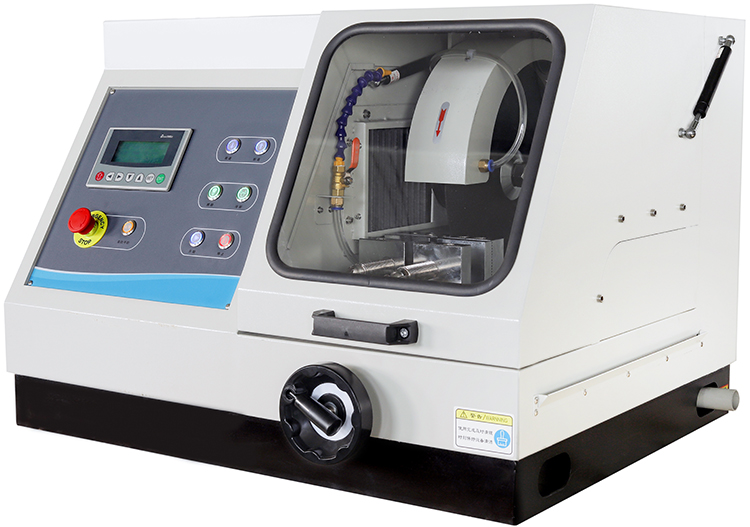

Q-80Z Digital Display Manual And Automatic Metallographic Sample Cutting Machine is composed of the body,
electric control box, cutting room, motor room, cooling system and other components.
This machine cools the sample through the cooling system to prevent the sample from overheating and burning
the tissue during the cutting process.
This machine is divided into manual cutting and automatic cutting.
The large-volume cutting room is more convenient for cutters to use.
It is the necessary sample preparation equipment for metallographic experiments in colleges and universities,
factories and enterprises.
2.Technical Parameter:
Model | Q-80Z |
Max. Cutting Diameter | Φ80 mm (Pipe) |
Spindle Speed | 2800 r/min |
Cutting Wheel Specification | Φ350*2.5*Φ32 mm |
Platform Moves In The Y Direction | 275 mm |
Cutting Table Size | 280*310 mm |
Cutting Chamber Housing | Steel Plate |
Feed Depth Tracking | LCD Digital Display |
Blessing Table Specifications | The Fixture Table Is Divided Into Left And Right, And The Central Cutting Edge |
Cutting Method | Manual Cut AND Auto Cut |
Delivery Method | Arbitrary Adjustment |
Cutting Speed | Up To 1 mm/s |
Automatic Cutting Method | Intermittent Cutting AND Continuous Cutting |
Feed Distance | Set As Needed |
Reset Method | Automatic Reset |
Cooling System | Automatic |
