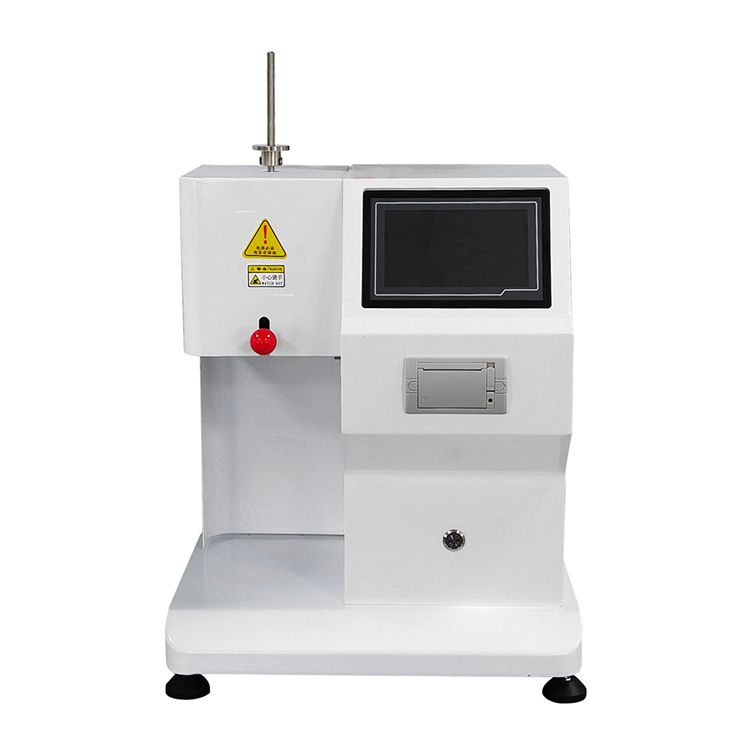

DK-MI-CP Touch Screen Digital Display Melt Flow Index Tester

1.Application:

Melt Flow Index Tester is used to determine the MFR / MVR value of the melt flow rate through the

standard die every 10 minutes when various plastics and gums pass through a certain temperature

and load in a viscous flow state.

It is suitable for melting high temperature polycarbonate, polysulfoxide, fluorine plastics, nylon and

other engineering plastics. Also, it is appropriate for the polyformaldehyde, polystrene, polypropylene,

ABS resin polyformaldehyde, polycarbonate resin and other low temperature plastic melting test.

The machine is widely used in plastic production, plastic products, petrochemical and other industries

as well as related universities, scientific research units and commodity inspection departments.

2.Technical Parameter:

Model	DK-MI-CP
Test Method	Melt Mass Flow Rate (MFR)
Loading Weight Method	Manual Weight Loading
Temperature Range	Room Temperature ~ 450℃
Temperature Drift	4 Hour, ≤0.5℃
Display Device	Keystroke Controlled
Temperature Fluctuation	±0.5℃ / ±0.2℃
Temperature Uniformity Of 10-70mm Above The Die	±1℃
Temperature Display Resolution	0.1℃
Time Display Resolution	0.1 s
Cutting Timing Range	1~999 s Adjustable
Mouth Mold Diameter	Φ2.095 ± 0.005 mm
Discharge Hole Length	8.000 ± 0.025 mm
Piston Rod Diameter	9.474 ± 0.007 mm
Piston Rod Length	6.35 ± 0.13 mm
Loading Container Diameter	Φ9.550 ± 0.007 mm
Test Range	0.1-150 g / 10 min
Farmar Precision	± 0.5%
Displacement Measuring Encoder	Omron Photoelectric Rotary Encoder
Testing Scope Of Mass Method	0.1-150 g /10 min
Test Range By Volumetric Method	50-5000 cm³ / 10 min
Blanking Way	Manual Cutting And Automatic Cutting
Test Weights	Total 8 Grades, 8 Sets Of Weights
Supply Power	1-Phase, AC 220V, 50Hz
