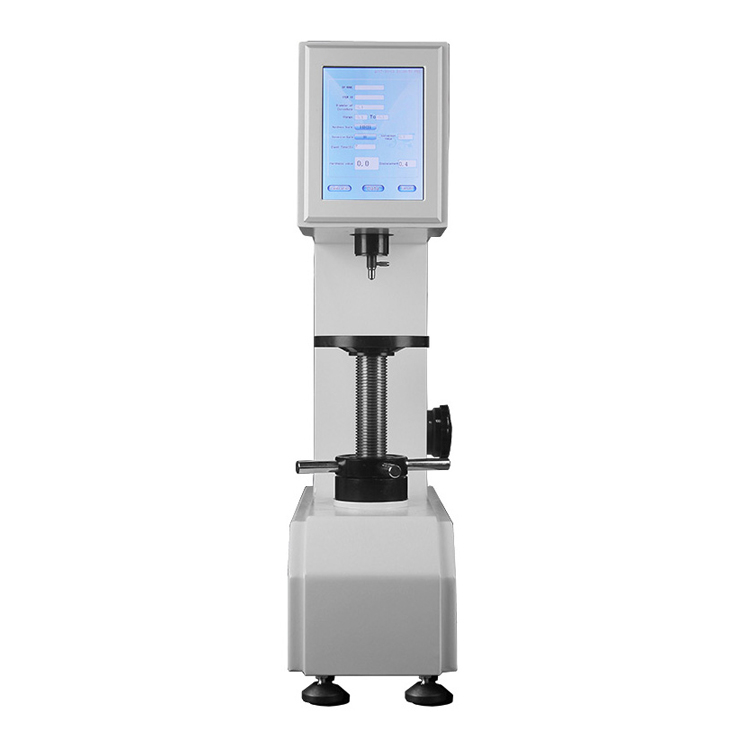

HPB-100 Touch Screen Digital Display Automatic Plastic Ball Indentation Hardness Tester
EMAIL: james@sdekon.com
SKYPE: james@sdekon.com
WECHAT: +86-18660816838
WHATSAPP: +86-18660816838
MOBILE PHONE: +86-18660816838
EMAIL: james@sdekon.com
SKYPE: james@sdekon.com
WECHAT: +86-18660816838
WHATSAPP: +86-18660816838
MOBILE PHONE: +86-18660816838
1.Application:
HPB-100 Touch Screen Digital Display Automatic Plastic Ball Indentation Hardness Tester is in refers to
the specified diameter of steel ball, under the action of the test load, vertical pressure into the surface
of the sample, keep a certain time after the unit indentation area under the average pressure of the test
instrument.
2.Technical Parameter:
Model | HPB-100 |
Initial Test Force | 9.8 N |
Total Test Force | 49 N, 132 N, 358 N, 961 N |
Indenter Diameter | Φ5 mm |
Indentation Depth Indicates The Min. Indexing Value | 0.001 mm |
Time Delayed Control | 1-99 s |
Value Accuracy | ±1% |
Supply Power | 1-Phase, AC 220V, 50Hz |
