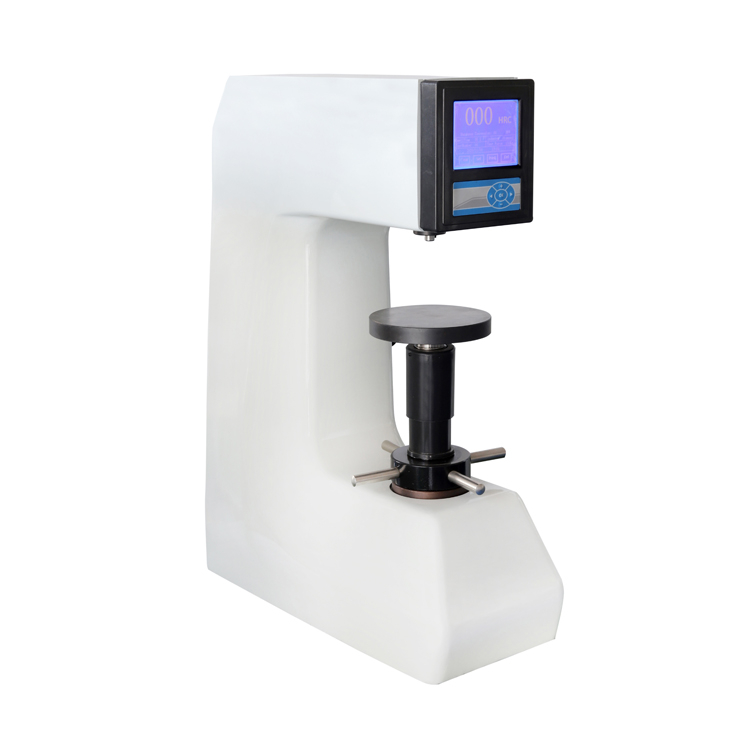

HRS-150 Digital Display Rockwell Hardness Tester
EMAIL: james@sdekon.com
SKYPE: james@sdekon.com
WECHAT: +86-18660816838
WHATSAPP: +86-18660816838
MOBILE PHONE: +86-18660816838
EMAIL: james@sdekon.com
SKYPE: james@sdekon.com
WECHAT: +86-18660816838
WHATSAPP: +86-18660816838
MOBILE PHONE: +86-18660816838
1.Application:
HRS-150 Digital Display Rockwell Hardness Tester is a high-tech product with high precision and stable
performance. The interface is menu-based, the operation is simple, intuitive and convenient.
The measuring device adopts a grating sensor and an ARM32-bit chip control system.
The hardness value will display on the LCD screen directly.
It is a mechanical and electrical integration hardness testing instrument.
2.Technical Parameter:
Model | HRS-150 |
Test Force | 60 Kgf (588.4N), 100 Kgf (980.7N), 150 Kgf (1471N) |
Measurement Range | 20-88 HRA, 20-100 HRBW, 20-70 HRC |
Max. Height Of Sample | 200 mm |
Throat Depth | 155 mm |
Hardness Resolution | 0.1 HR |
Supply Power | 1-Phase, AC 220V, 50Hz |
