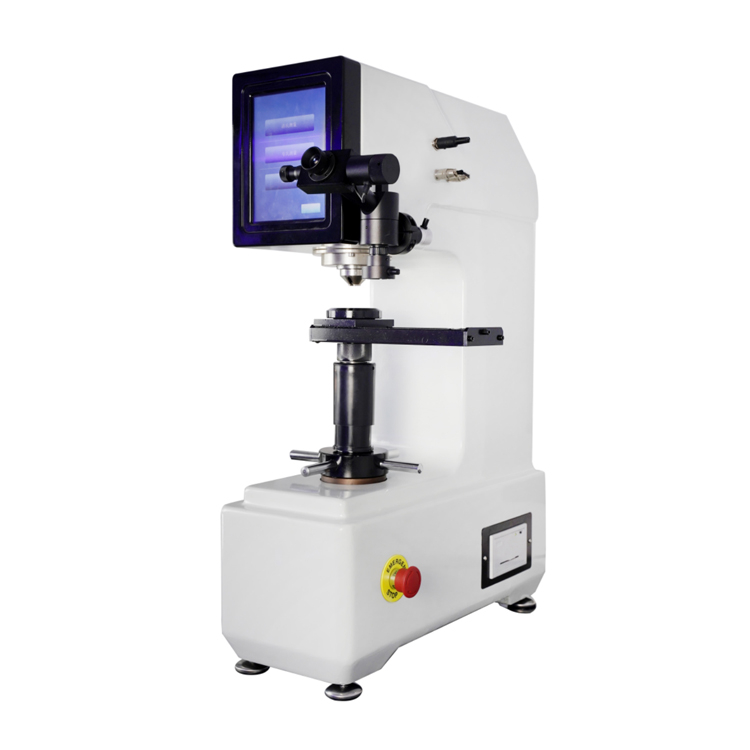

HBRV-187.5S Touch Screen Digital Display Brinell Rockwell Vickers Hardness Tester
EMAIL: james@sdekon.com
SKYPE: james@sdekon.com
WECHAT: +86-18660816838
WHATSAPP: +86-18660816838
MOBILE PHONE: +86-18660816838
1.Application:
HBRV-187.5S Touch Screen Digital Display Brinell Rockwell Vickers Hardness Tester has a novel appearance,
complete functions, convenient operation, clear and intuitive display, stable performance.
It is a high-tech product integrating light, machine and electricity. Test, with multi-level test force, can meet
a variety of hardness testing needs. It has the characteristics of high test accuracy, simple operation, high
sensitivity, convenient use and stable indication.
2.Technical Parameter:
Model | HBRV-187.5S |
Rockwell Test Force | 60 Kgf (588.4N), 100 Kgf (980.7N), 150 Kgf (1471N) |
Rockwell Scale Range | HRA, HRB, HRC, HRD, HRF, HRG |
Rockwell Measuring Range | 20-90 HRA, 20-100 HRB, 20-70 HRC |
Brinell Test Force | 15.625 Kgf (153.2N), 31.25 Kgf (306.5N), 62.5 Kgf (612.9N), 125 Kgf (1226N), 187.5 Kgf (1839N) |
Brinell Scale Range | HBW2.5/15.625, HBW2.5/31.25, HBW2.5/62.5, HBW5/125, HBW2.5/187.5 |
Brinell Measuring Range | 5-650 HBW |
Vickers Test Force | 5 Kgf (49.03N), 10 Kgf (98.07N), 20 Kgf (196.1N), 30 Kgf (294.2N), 50 Kgf (490.3N), 100 Kgf (980.7N) |
Vickers Scale Range | HV5, HV10, HV20, HV30, HV50, HV100 |
Vickers Measuring Range | 5-3000 HV |
Overall Lens Magnification | 100X, 50X, 25X |
Max. Height Of Sample | Rockwell 180 mm; Brinell 165 mm; Vickers 165 mm |
Throat Depth | 160 mm |
Supply Power | 1-Phase, AC 220V, 50Hz |
