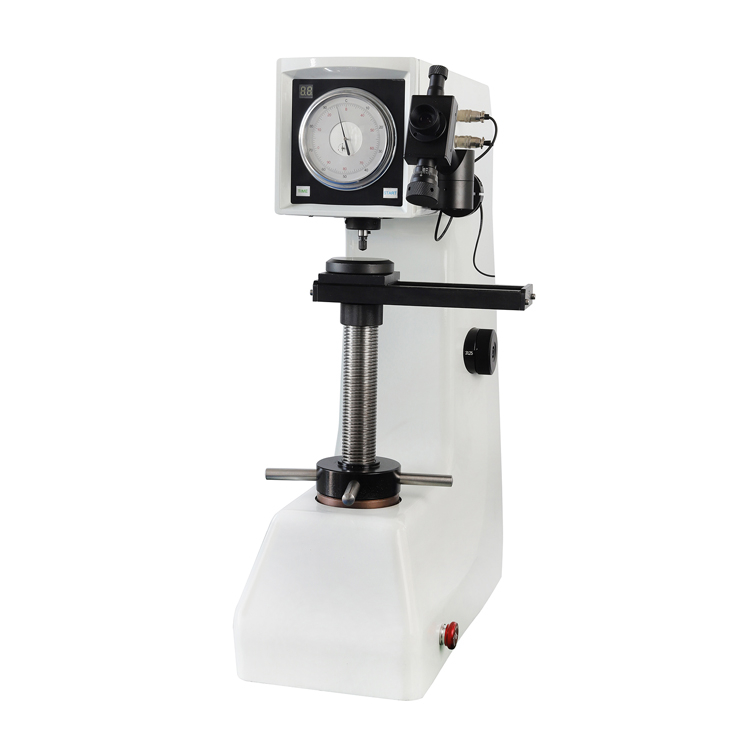

HBRV-187.5D Dial Display Electric Brinell Rockwell Vickers Hardness Tester
EMAIL: james@sdekon.com
SKYPE: james@sdekon.com
WECHAT: +86-18660816838
WHATSAPP: +86-18660816838
MOBILE PHONE: +86-18660816838
1.Application:
HBRV-187.5D Dial Display Electric Brinell Rockwell Vickers Hardness Tester is a multi-purpose and multi-functional
hardness tester that can perform Brinell, Rockwell and Vickers hardness tests and seven-level test force, which can
meet the requirements of various hardness tests of users.
It's a high-precision, high-stability hardness tester with improved mechanical structure and improved stability.
2.Technical Parameter:
Model | HBRV-187.5D |
Rockwell Test Force | 60 Kgf (588.4N), 100 Kgf (980.7N), 150 Kgf (1471N) |
Rockwell Scale Range | HRA, HRB, HRC |
Rockwell Measuring Range | 20-90 HRA, 20-100 HRB, 20-70 HRC |
Brinell Test Force | 31.25 Kgf (306.5N), 62.5 Kgf (612.9N), 187.5 Kgf (1839N) |
Brinell Scale Range | HBW2.5/31.25, HBW2.5/62.5, HBW2.5/187.5 |
Brinell Measuring Range | 5-650 HBW |
Vickers Test Force | 30 Kgf (294.2N), 100 Kgf (980.7N) |
Vickers Scale Range | HV 30, HV 100 |
Vickers Measuring Range | 10-3000 HV |
Overall Lens Magnification | 100X, 50X, 25X |
Max. Height Of Sample | 200 mm |
Throat Depth | 160 mm |
Supply Power | 1-Phase, AC 220V, 50Hz |
