Description:

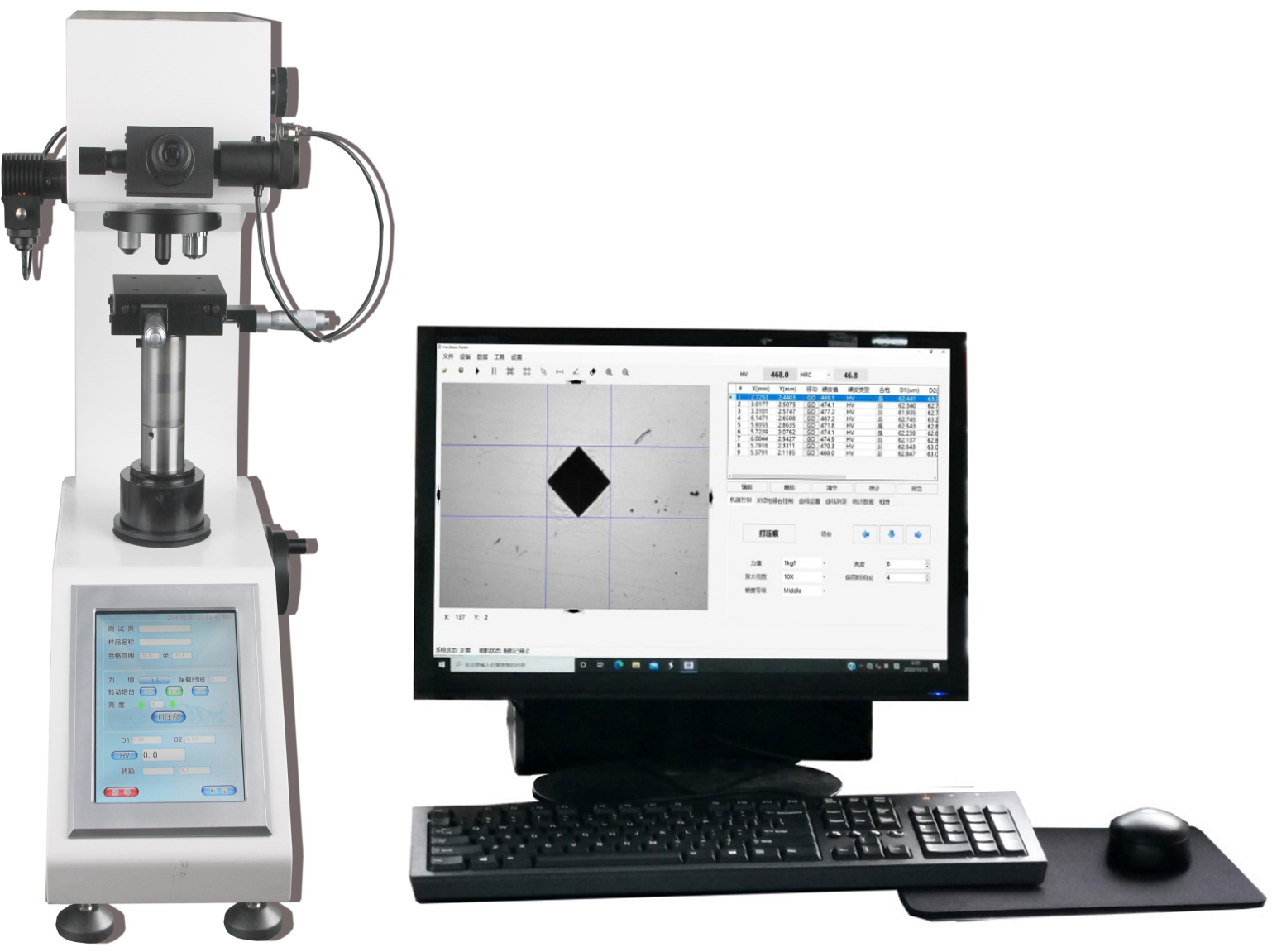

HVS-2MDT-MA Computer Control Semi-Automatic Micro Vickers Hardness Tester
consists of two parts:
(1).HV-2MDT Touch Screen Digital Display Automatic Turret Micro Vickers Hardness Tester
(2).HVS-M-A Automatic (Micro) Vickers Hardness Measurement and Control Software
HV-2MDT Touch Screen Digital Display Automatic Turret Micro Vickers Hardness Tester
1.Application:
HV-2MDT Touch Screen Digital Display Automatic Turret Micro Vickers Hardness Tester is an ideal high-end micro hardness tester
with lifting mechanism of optical cross guide rail, accurate force value and clear image.
2.Technical Parameter:
Model | HV-2MDT |
Test Force | 10gf(0.098N); 25gf(0.245N); 50gf(0.49N); 100gf(0.98N); 200gf(1.96N); 300gf(2.94N); 500gf(4.9N); 1Kgf(9.8N); 2Kgf (19.6N) |
Measurement Resolution | 0.01 um |
Hardness Measurement Range | 8~2900 HV |
Test Force Loading Method | Automatic (Loading, Dwell, Unloading) |
Conversion Scale | Rockwell, Brinell |
Timing Of Force | 1~99 s |
Max. Height Of Sample | 100 mm |
Distance From Indenter To The Wall | 130 mm |
Microscope Magnification | 100X, 400X |
XY Stage | Size: 100*100mm; Max. Movement: 25*25mm |
Data Display Output | 8 Inch Touch Screen Display Readout, RS-232 Interface, USB Drive |
Standards Compliant | GB/T4340.2, ASTM E92 |
HVS-M-A Automatic Micro Vickers Hardness Measurement and Control Software
(1).The measuring software can be matched with a variety of vickers hardness tester, upgrading the single hardness tester
to the computer measuring system.
(2).Suitable for micro vickers hardness tester, its Max. test force including 1Kgf and 2Kgf.
(3).The image is clear and can be measured standard samples automatically.
(4).The system can be calibrated by micrometer or hardness block.
(5).Hardness is converted to other hardness according to National Standard and ASTM.
Hardness value statistics and hardness beyond alarm.
(6).Automatically generate test report, save all test data forever, easy to query history.
(7).For Automatic Turret Type of micro vickers hardness tester, for example, HV-1MDT, HV-1MDT-Q and HV-2MDT.
You can connect the hardness tester to the computer through the RS-232 interface, and install this software on the computer,
so the hardness tester and the software will blend into one. You can use the software to control hardness tester to test, and
control the turret, make indentation and brightness adjustment directly.
