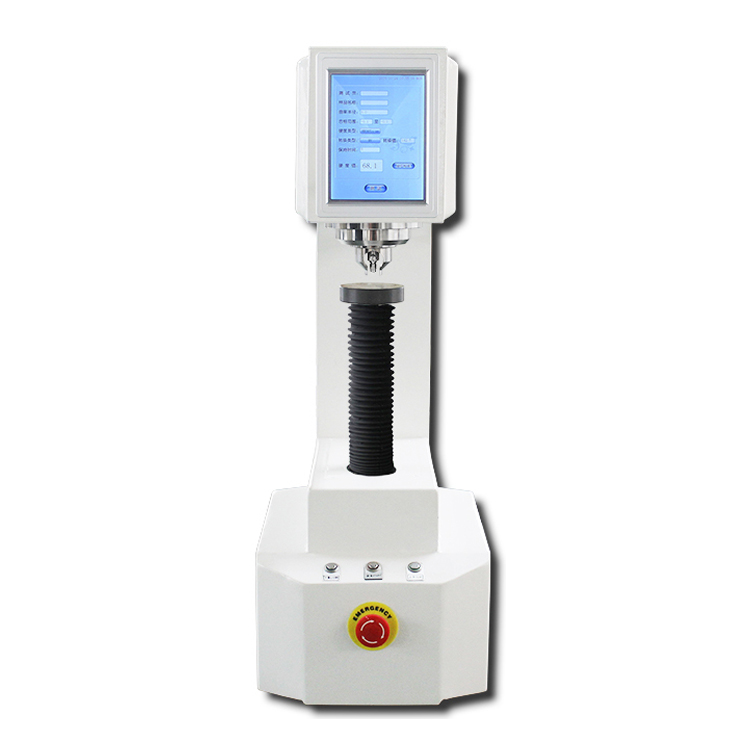

HR-150-45DX-Z Touch Screen Digital Display Automatic Rockwell / Superficial Rockwell Hardness Tester

1.Application:

HR-150-45DX-Z Touch Screen Digital Display Automatic Rockwell and Superficial Rockwell Hardness Tester

is electronic electric loading, high precision sensors, with a unique closed loop control system.

Worktable automatic lifting, donot need to manual rotation of screw wheel.

Automatically apply the initial test force and the main test force.

Powerful data processing function, including: HR, HB, HV and other hardness system conversion, set the qualified

range, automatic alarm over the limit, can input the tester, sample name and so on.

More sample and test information, measurement data USB disk saved in EXCEL format, easy to edit and process.

2.Technical Parameter:

Model	HR-150-45DX-Z
Rockwell Initial Test Force	10Kgf (98.07N)
Rockwell Total Test Force	60Kgf (588N); 100Kgf (980N); 150Kgf (1471N)
Rockwell Hardness Scale	HRA; HRB; HRC; HRD; HRE; HRF; HRG; HRH; HRK; HRL; HRM; HRR; HRP; HRS; HRV
Rockwell Measuring Range	HRA:20-88; HRB:20-100; HRC:20-70; HRD:40-77; HRE:70-100; HRF:60-100; HRG:30-94; HRH:80-100; HRK:40-100; HRL:100-120; HRM:85-115; HRR:114-125
Superficial Rockwell Initial Test Force	3Kgf (29.42N)
Superficial Rockwell Total Test Force	15Kgf (147.1N); 30Kgf (294.2N); 45Kgf (441.3N)
Superficial Rockwell Hardness Scale	HR15N; HR15T; HR15W; HR15X; HR15Y HR30N; HR30T; HR30W; HR30X; HR30Y HR45N; HR45T; HR45W; HR45X; HR45Y
Superficial Rockwell Measuring Range	HR15N: 70-94; HR30N: 42-86; HR45N: 20-77 HR15T: 67-93; HR30T: 29-82; HR45T: 1-72
Hardness Value Resolution	0.1 HR
Test Force Error	＜0.5%
Dwell Time	0~99 s
Max. Height Of Sample	300 mm
Distance From Indenter To The Wall	200 mm
Conversion Scale	Rockwell, Brinell and Vickers
