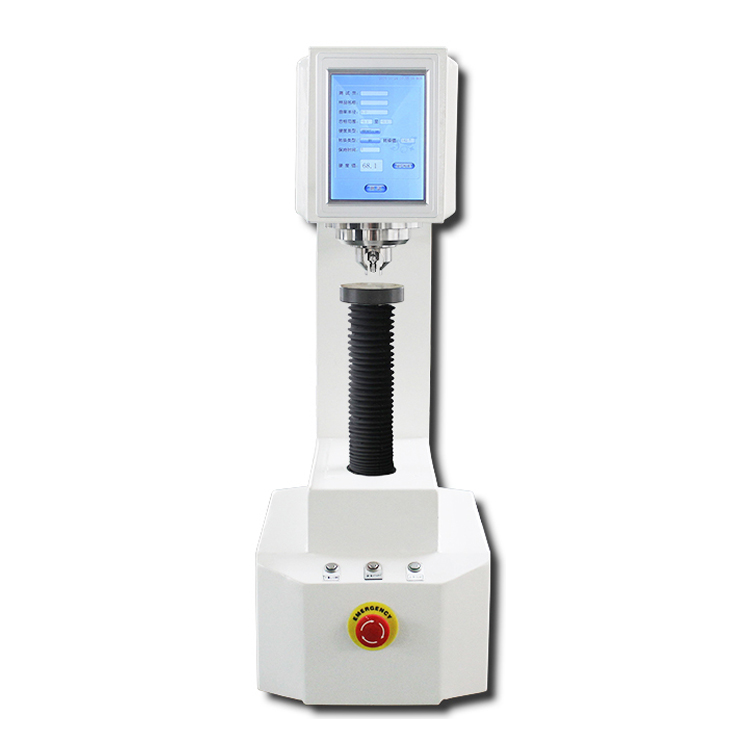

HR-150DX-Z Touch Screen Digital Display Automatic Rockwell Hardness Tester

1.Application:

HR-150DX-Z Touch Screen Digital Display Automatic Rockwell Hardness Tester is electronic electric loading,

high precision sensors, with a unique closed loop control system.

Worktable automatic lifting, donot need to manual rotation of screw wheel.

Automatically apply the initial test force and the main test force.

Powerful data processing function, including: HR, HB, HV and other hardness system conversion, set the qualified

range, automatic alarm over the limit, can input the tester, sample name and so on.

More sample and test information, measurement data USB disk saved in EXCEL format, easy to edit and process.

2.Technical Parameter:

Model	HR-150DX-Z
Initial Test Force	10Kgf (98.07N)
Main Test Force	60Kgf (588N); 100Kgf (980N); 150Kgf (1471N)
Hardness Scale	HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRR, HRP, HRS, HRV
Measuring Range	HRA:20-88, HRB:20-100, HRC:20-70, HRD:40-77, HRE:70-100, HRF:60-100, HRG:30-94, HRH:80-100, HRK:40-100, HRL:100-120, HRM:85-115, HRR:114-125
Hardness Value Resolution	0.1 HR
Test Force Error	＜0.5%
Dwell Time	0~99 s
Max. Height Of Sample	300 mm
Distance From Indenter To The Wall	200 mm
Conversion Scale	Rockwell, Brinell and Vickers
