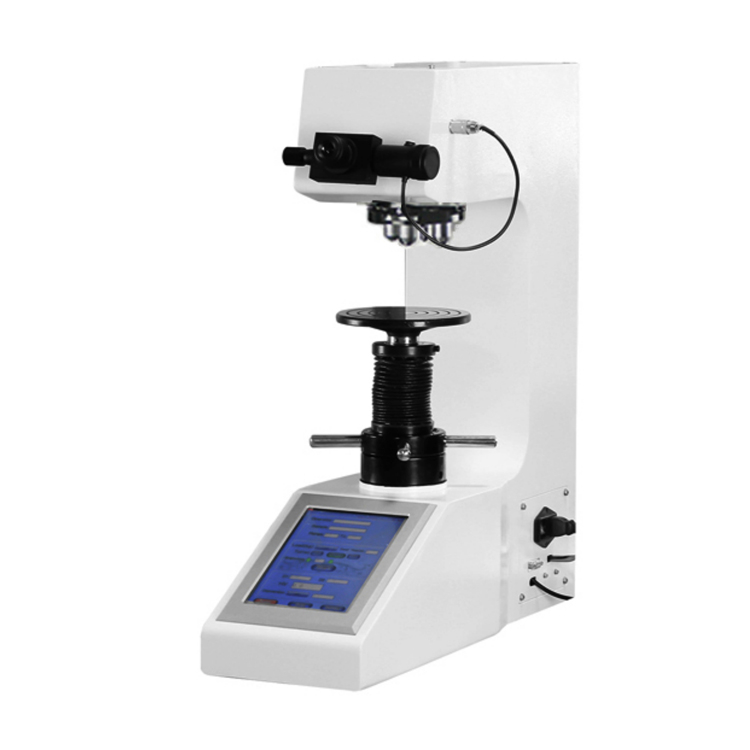

HV-5MDX-Q Touch Screen Digital Display Automatic Turret Vickers Hardness Tester
EMAIL: james@sdekon.com
SKYPE: james@sdekon.com
WECHAT: +86-18660816838
WHATSAPP: +86-18660816838
MOBILE PHONE: +86-18660816838
1.Application:
HV-5MDX-Q Touch Screen Digital Display Automatic Turret Vickers Hardness Tester
(1).8 inch touch screen interface, easy to operate.
(2).Automatic turret type.
(3).Three objective lens type, any 3 of 5X, 10X, 20X and 40X objective lens are installed simultaneously.
(4).Maximum 7 levels of test force, force value is optional.
(5).Hardness value automatic display.
2.Technical Parameter:
Model | HV-5MDX-Q |
Test Force | 0.3Kgf (2.94N); 0.5Kgf (4.9N); 1.0Kgf (9.8N); 2.0Kgf (19.6N); 2.5Kgf (24.5N); 3.0Kgf (29.4N); 5.0Kgf (49.0N) |
Hardness Measurement Range | 8~2900 HV |
Measurement Resolution | 0.01 um |
Test Force Loading Method | Automatic (Loading, Dwell, Unloading) |
Max. Height Of Sample | 180 mm |
Distance From Indenter To The Wall | 160 mm |
Dwell Time | 1~99 s |
Measurement Of The Eyepiece | 10X |
Objective Lens | 5X, 10X, 20X |
Test Microscope Magnification | 50X, 100X, 200X |
Conversion Scale | HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T |
Data Output | Touch Screen Display Readout, RS-232 Interface, Saved In The U Disk In EXCEL Format |
Standards Compliant | GBT4340.1, GBT4340.2, ASTM_E92 |
