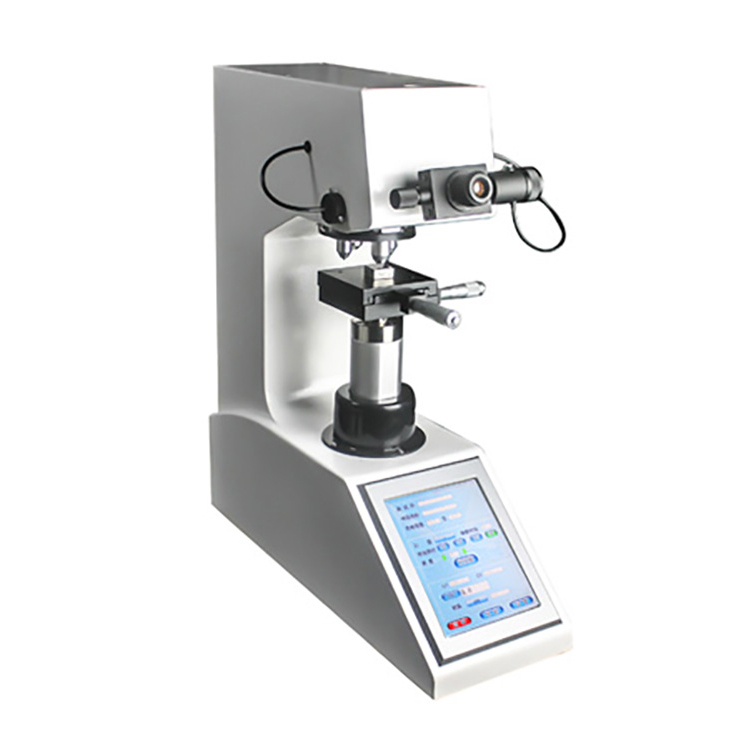

HV-1MDT-Q Touch Screen Digital Display Automatic Turret Micro Vickers Hardness Tester

1.Application:

HV-1MDT-Q Touch Screen Digital Display Automatic Turret Micro Vickers Hardness Tester is double indenter

double objective lens, installed the 136° Vickers diamond indenter, the Knoop diamond indenter, the high

magnification objective lens and the low magnification objective lens at the same time.

It can measure Vickers hardness and Knoop hardness at the same time.

Adopt optical cross guide rail lifting mechanism, force value is accurate, the image is clear.

It is an ideal high-end micro hardness tester.

2.Technical Parameter:

Model	HV-1MDT-Q
Test Force	10gf (0.098N); 25gf (0.245N); 50gf (0.49N); 100gf (0.98N); 200gf (1.96N); 300gf (2.94N); 500gf (4.9N); 1Kgf (9.8N)
Measurement Resolution	0.01 um
Hardness Measurement Range	8~2900 HV / HK
Test Force Loading Method	Automatic (Loading, Dwell, Unloading)
Conversion Scale	Rockwell, Brinell
Dwell Time	1~99 s
Max. Height Of Sample	100 mm
Distance From Indenter To The Wall	130 mm
Microscope Magnification	100X, 400X
X-Y Stage	Size: 100100mm; Max. Movement: 2525mm
Data Display Output	8 Inch Touch Screen Display Readout, Can Store 20 Test Results, RS-232 Interface, USB Drive
Standards Compliant	GB/T4340, GB/T 18449.2, ASTM E92
