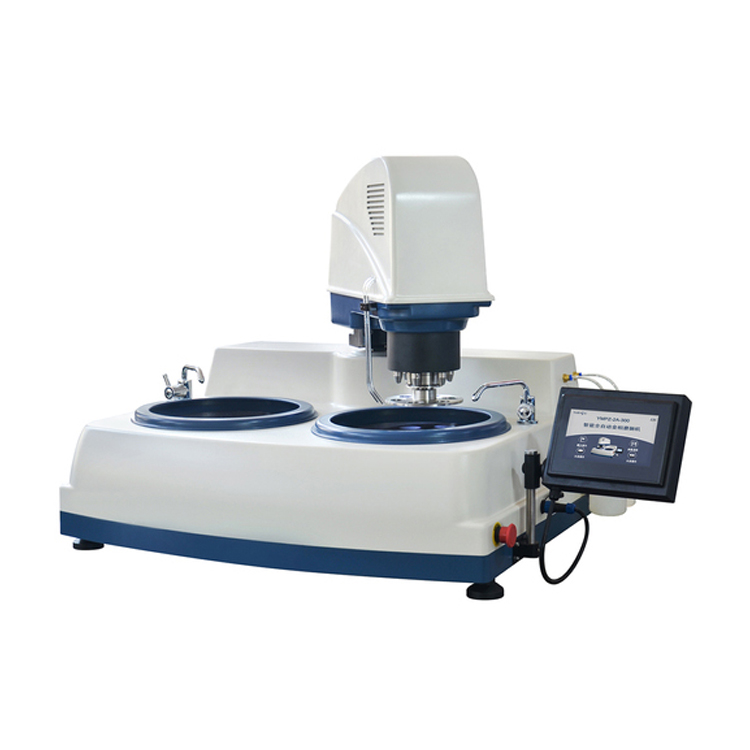

SDEKON MP-2ASZT Touch Screen Digital Display Automatic Metallographic Grinding Polishing Machine

1.Application:

SDEKON MP-2ASZT Touch Screen Digital Display Automatic Metallographic Sample Grinding Polishing Machine

(Automatic Dripping Type) is a single-chip microcomputer controlled grinding and polishing machine.

The shell is formed with ABS material, which is beautiful in appearance, anti-corrosion and durable.

It is stepless speed control and can change the rotational direction.

The grinding head has two methods (Multi-point Independent Pressurization and Central Pressurization).

This machine can effectively replace the manual grinding and polishing processes, which greatly saves labor and

improves the quality of grinding and polishing and the efficiency of sample preparation.

Therefore it is the ideal equipment for the metallographic sample preparation.

2.Technical Parameter:

Model	MP-2ASZT
Disc Diameter	Φ 254 mm
Abrasive Paper Diameter	Φ 250 mm
Rotating Speed	Stepless Speed: 100~1000 r/min
Rotational Direction	Clockwise or Counterclockwise
Disc Electromotor	DC Brushless Motor, 220V, 1.2KW
Head Electromotor	Stepper Motor, 200W
Head Speed	Stepless Speed: 20~120 r/min
Timing Set	0~99 min
Sample Holding QTY	6 PCS
Sample Holder Specification	Φ30mm, 6 Holes
Pressurization Method	Multi-point Independent Pressurization and Central Pressurization
Multi-point Independent Pressurization Force	0~50 N
Central Pressurization Force	0~160 N
Control and Display	With Automatic Locking Of The Grinding Head, 7 Inch LCD Touch Screen, Washing Function, Automatic Dripping
Suspension Volume	Each Bottle 500ml, Total 2 Bottles
