Description:
1.Application:

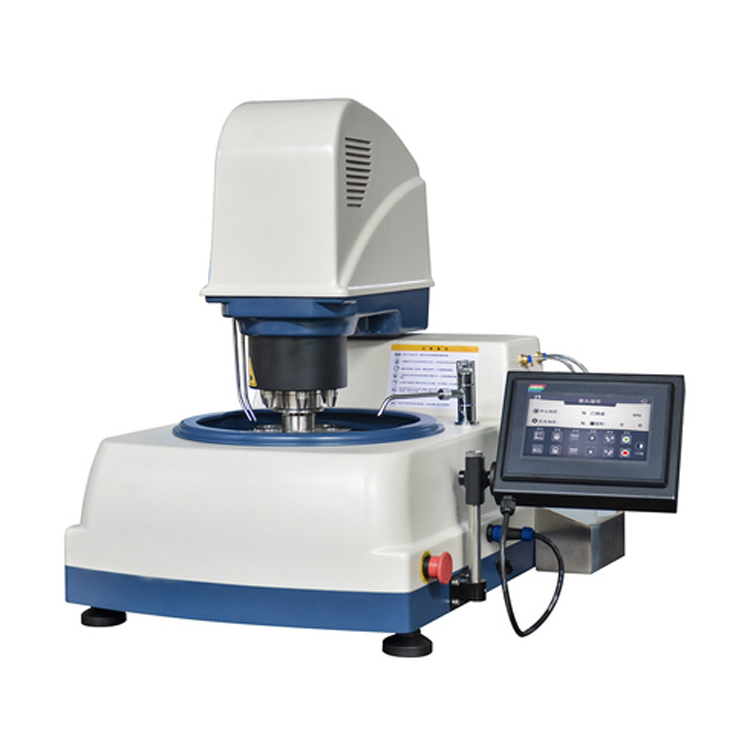

SDEKON MP-1ASZT Touch Screen Digital Display Automatic Metallographic Grinding Polishing Machine
(Automatic Dripping Type) is a single-chip microcomputer controlled grinding and polishing machine.
The shell is formed with ABS material, which is beautiful in appearance, anti-corrosion and durable.
It is stepless speed control and can change the rotational direction.
The grinding head has two methods (Multi-point Independent Pressurization and Central Pressurization).
This machine can effectively replace the manual grinding and polishing processes, which greatly saves
labor and improves the quality of grinding and polishing and the efficiency of sample preparation.
Therefore it is the ideal equipment for the metallographic sample preparation.
2.Technical Parameter:
Model | MP-1ASZT |
Disc Diameter | Φ 254 mm |
Abrasive Paper Diameter | Φ 250 mm |
Rotating Speed | Stepless Speed: 100~1000 r/min |
Rotational Direction | Clockwise or Counterclockwise |
Disc Electromotor | DC Brushless Motor, 220V, 1.2KW |
Head Electromotor | Stepper Motor, 200W |
Head Speed | Stepless Speed: 20~120 r/min |
Timing Set | 0~99 min |
Sample Holding QTY | 6 PCS |
Sample Holder Specification | Φ30mm, 6 Holes |
Pressurization Method | Multi-point Independent Pressurization and Central Pressurization |
Multi-point Independent Pressurization Force | 0~50 N |
Central Pressurization Force | 0~160 N |
Control and Display | With Automatic Locking Of The Grinding Head, 7 Inch LCD Touch Screen, Washing Function, Automatic Dripping |
Suspension Volume | Each Bottle 500ml, Total 2 Bottles |
