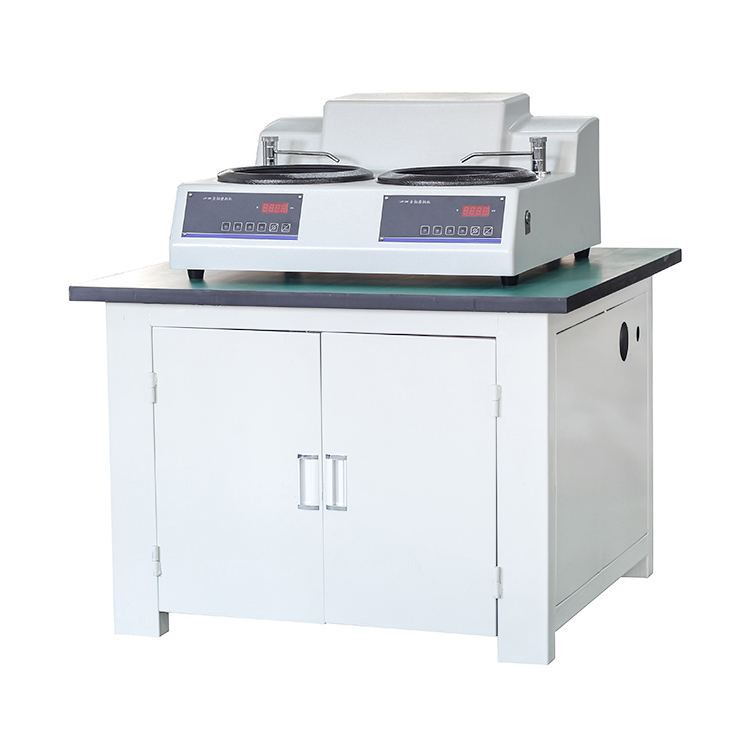

SDEKON MP-2CV Digital Display Dual Control Metallographic Sample Grinding Polishing Machine
EMAIL: james@sdekon.com
SKYPE: james@sdekon.com
WECHAT: +86-18660816838
WHATSAPP: +86-18660816838
MOBILE PHONE: +86-18660816838
1.Application:
SDEKON MP-2CV Digital Display Dual Control Metallographic Sample Grinding Polishing Machine
is two grinding polishing discs, independent motor, independent control.
Eight common speeds, each speed can be set by the user, to achieve stepless speed regulation.
Anti-clockwise / clockwise, one-button switching, follow the operator's habits.
Rotary water pipe cooling can rotate direction, adjust water flow.
The cabinet type workbench, do not need to use other workbench again, occupies a small space.
The cabinet can store various grinding polishing consumables.
2.Technical Parameter:
Model | MP-2CV | |
Disc Diameter | Φ230mm | |
Rotating Speed | Left Disc | Stepless Speed: 0~1000 r/min V1=150 r/min, V2=300 r/min, V3=600 r/min, V4=800 r/min (Each Speed Can Be Set Within The Range Of 100-1000 r/min) |
Right Disc | Stepless Speed: 0~1000 r/min V1=300 r/min, V2=500 r/min, V3=800 r/min, V4=1000 r/min (Each Speed Can Be Set Within The Range Of 100-1000 r/min) | |
Direction Of Rotation | Anti-clockwise / Clockwise, One-button Switching | |
Motor Power | 750 W * 2 Motors | |
