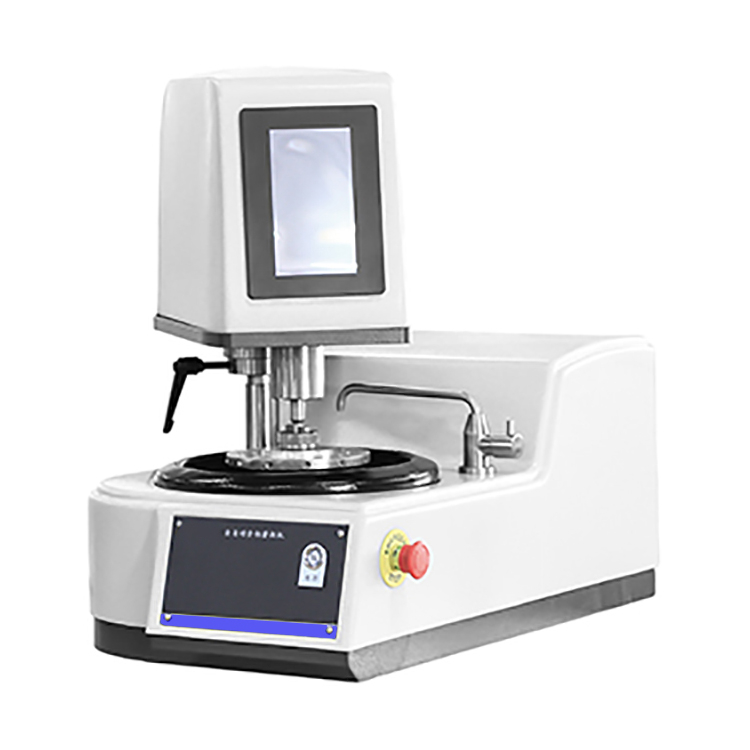

SDEKON MP-1000X Touch Screen Digital Display Automatic Metallographic Grinding Polishing Machine

1.Application:

SDEKON MP-1000X Touch Screen Digital Display Automatic Metallographic Sample Grinding Polishing Machine

is Center Loading Force Method, can fix six samples at one time to complete all grinding and polishing processes

to ensure the complete plane of each sample.

Independent Control of Grinding and Polishing Disc and Sample Plate: rotation speed, grinding and polishing time,

rotation direction, water valve closing and other grinding and polishing parameters.

Touch Screen Interface, convenient setting of grinding and polishing parameters, intuitive status display and simple

operation. Easily replace the magnetic anti-stick disk, you can complete the rough, fine grinding and coarse, fine

polishing of all kinds of samples, one disc is equivalent to N discs.

2.Technical Parameter:

Model	MP-1000X
Display and Operate Way	Touch Screen Digital Display
Working Disc Diameter	Φ254 mm (10 Inch) With Magnetic Conversion Disc System
Working Disc Rotating Speed	Stepless Speed: 100~1000 r/min The Forward and Backward Rotation Can Be Switched
Grinding Polishing Head Rotating Speed	Stepless Speed: 0~100 r/min
Sample Preparation Time Range	0-9999 s
Sample Holding QTY	6 PCS
Sample Holder Specification	Φ30mm, 6 Holes
Pressurization Method	Central Pressurization
Central Pressurization Force	30-200 N
