Description:
1.Application:

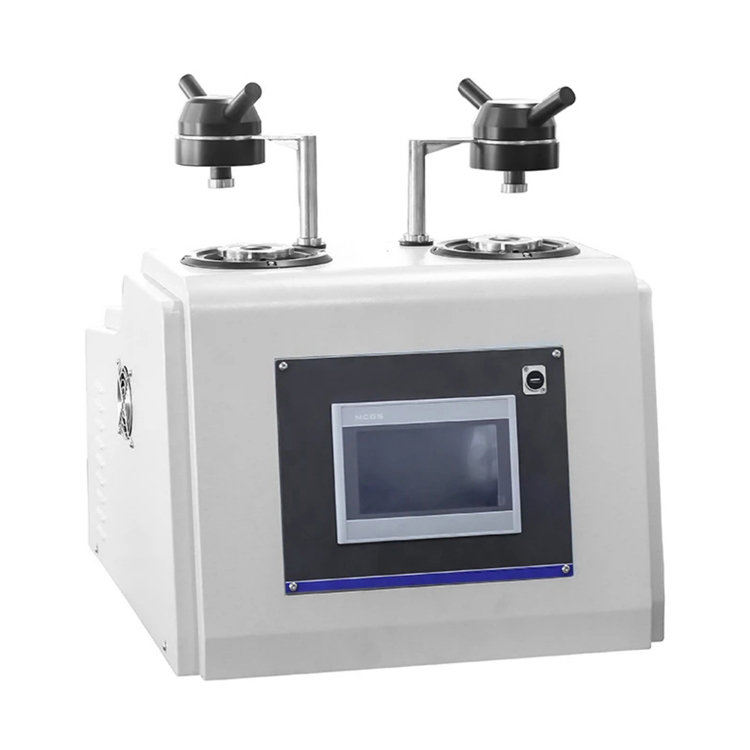

SDEKON ZXQ-1AT Touch Screen Digital Display Automatic Metallographic Sample Mounting Press
(Double Cylinder Type) is fully automatic completion of the inlay process, suitable for hot mounting
of all varieties of inlays (thermosetting and thermoplastic).
This machine is double-station type, it can mount 4 pcs of samples at the same time.
Human-machine interface and PLC control, the system is stable and reliable.
One-button start to complete the sample preparation process automatically.
Simple and effective top seal mechanism, do not need to manual assistance when ejecting samples.
Rotate the top sealing device, pop up automatically, reach the highest position, stop automatically,
and only remove the sample.
USB interface, mounting process parameters are imported and exported through U disk.
2.Technical Parameter:
Model | ZXQ-1AT |
Work Cylinder | Double Cylinder Type |
Mold Diameter | Φ25mm OR Φ30mm OR Φ40mm OR Φ50mm |
Number of Mold Sets | 2 Sets |
Max. QTY of Mounting Samples | 4 PCS |
Heater | 4000W |
Mounting Program | Editable Mounting Technology Library, Can Store 99 Sets Of Mounting Technology |
Program Input / Output | USB Disk |
Operation and Display Mode | 7" Touch Screen Operation and Display |
Mounting Temperature Range | 0~200℃, Can Adjustable |
Mounting Time Range | 0~30 min |
Pressure Range | 0~6 MPa Can Adjustable |
Mounting Total Time | 6 min (Φ25mm Samples); 6 min (Φ30mm Samples) 7 min (Φ40mm Samples); 8 min (Φ50mm Samples) |
Pressure | 300 Bar For Φ25mm and Φ30mm Samples 180 Bar For Φ40mm and Φ50mm Samples |
Pressure Mode | Automatic (Electro-hydraulic System) |
Cooling Way | Automatic Water Cooling, Solenoid Valve Control |
Mold Cavity Height | 135mm, Effective Height 60mm |
