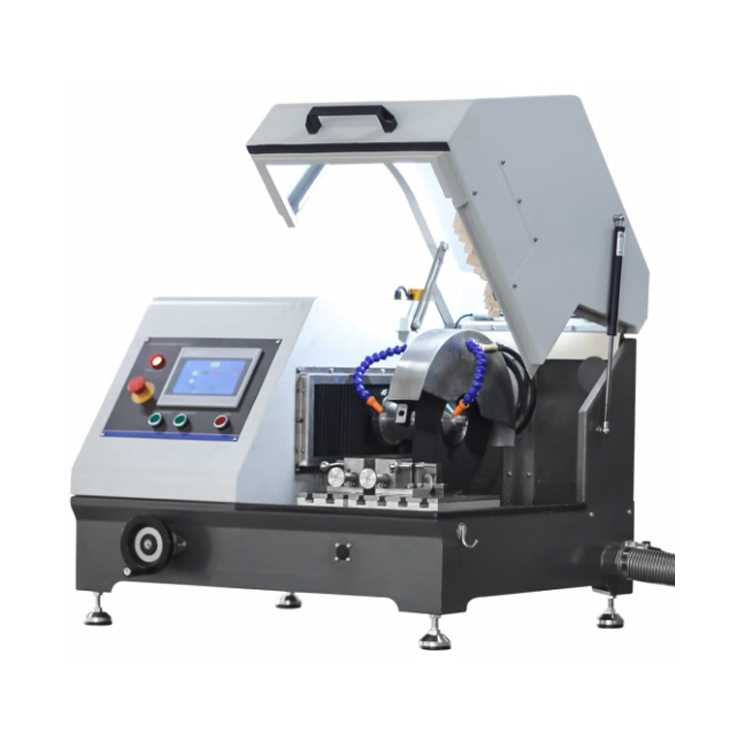

QG-350YAT Touch Screen Digital Display Manual / Automatic Metallographic Sample Cutting Machine

1.Application:

adopts advanced single-chip microcomputer PLC automatic control, to achieve automatic cutting.

Automatic working state, automatic feeding and retreating, feeding and retreating speed can be set.

Can be completely manual operation, not affected by automatic mode.

Adopt fully closed structure, transparent protective cover, increase the observation field of vision, up and

down the way of opening and closing is simple and easy, does not occupy space.

Super circulating cooling system makes the workpiece will not burn when cutting.

2.Technical Parameter:

Model	QG-350YAT
Cutting Disc Specifications	3502.532 mm
Spindle Speed	2800 r/min
Feed Speed	0.01-3 mm/s Is Adjustable
Cutting Stroke (Y Axis)	220 mm
Max. Cut Sample	Φ100 mm Round Rods
Max. Clamping Distance	128 mm
Working Table Size	333 mm*240 mm
Cutting Clamp	Fast Push-pull Type, The Height Of The Clamp Mouth Is 60mm
Control	LCD Touch Screen, Button
Lighting	LED Lighting
Cooling Device	Four Channels Of Cooling Water, A Cooling Water Gun
Circulating Water Tank	External Circulating Filter Water Tank 40L
Motor	Power: 4 KW
Emergency Brake	Abrupt Stop Switch
