Description:
1.Application:

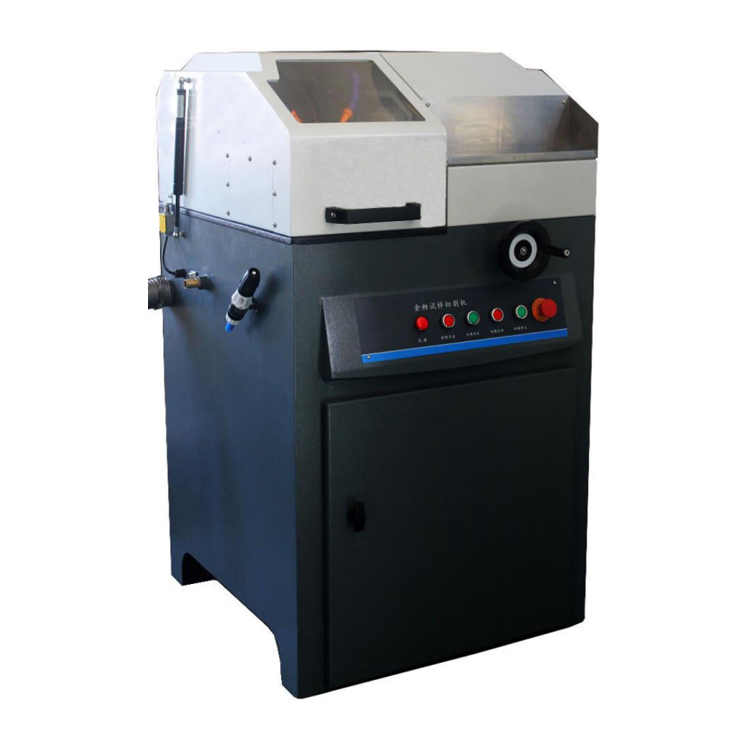

QG-300Y Vertical Type Manual Metallographic Sample Cutting Machine use the fully enclosed double-shell
structure, the cutting chamber is separated from the motor chamber; use the fast clamping device, to clamp
the samples more faster and accurate; single-side gas spring device; the operation hand wheel drives the
motor to cut in the Y direction of the cutting disc, the speed is manual controlled completely; with special
cooling water tank, for the circulation of coolant; smooth rotation and low noise.
2.Technical Parameter:
Model | QG-300Y |
Max. Cutting Diameter | Φ85 mm |
Cutting Disc Specification | Φ300*3*Φ32 mm |
Rotating Speed | 2800 r/min |
Cutting Platform Specification | 240*232 mm |
Emergency Brake Device | Emergency Stop Switch |
Cutting Room Lighting | Low Voltage DC Lighting |
Observation Window | Explosion-proof Transparent Engineering Plastic |
Cutting Mode | Manual Type Moving Cutting In The Y Direction |
Clamping Device | Standard Quick Clamps |
Cooling Device | 40L External Circulation Filter Tank |
