Description:
1.Application:

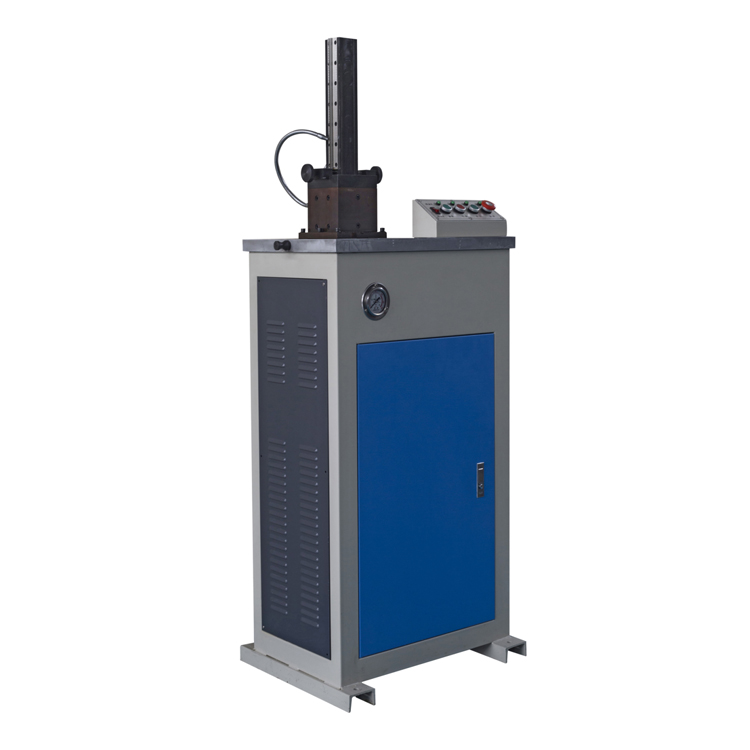

VU-2Y Hydraulic Automatic Control Impact Sample Notch Broaching Machine is driven by oil pump
hydraulic cylinder, configured with 2mm V-shaped broach and 2mm U-shaped broach.
One-time broaching molding, two pcs of standard sample notches can be processed successfully at
one time. The broach is made of special materials and special processes, with high hardness, good
wear resistance and long service life.
The processed V-notch and U-notch can meet the relevant national standards of GB/T229-2007.
Because one-time broaching molding, its processing identity is excellent.
It can guarantee that processed sample notch 100% qualified.
2.Technical Parameter:
Model | VU-2Y |
Control Method | Hydraulic Automatic Control |
Processing Sample Notch Type | V-shaped (2mm) and U-shaped (2mm) |
Processing Sample Size | 10x10(7.5 or 5)x55 mm |
Broach Stroke | 340 mm |
Broaching Speed | 2.0 m/min |
Broach Material | Special Alloy Steel W18Cr4V |
Lubrication System | Lubricating Oil Circulation |
