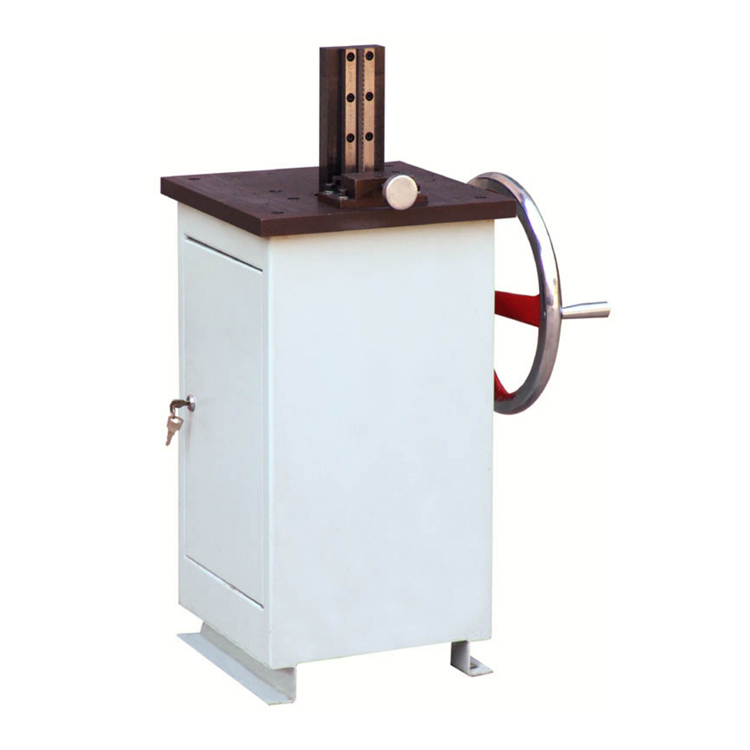

VU-1S Manual Control Impact Sample Notch Broaching Machine
EMAIL: james@sdekon.com
SKYPE: james@sdekon.com
WECHAT: +86-18660816838
WHATSAPP: +86-18660816838
MOBILE PHONE: +86-18660816838
1.Application:
VU-1S Manual Control Impact Sample Notch Broaching Machine is manual structure, configured with
2mm V-shaped broach or 2mm U-shaped broach according to users' requirements.
The sample notch is formed in one-time processing, and the operation is simple and reliable.
The processed V-shaped notch and U-shaped notch can meet the requirements of GB229-2007 "Metal
Material Pendulum Impact Test Method".
One-time broaching molding, its processing identity is excellent.
It can guarantee that processed sample notch 100% qualified.
2.Technical Parameter:
Model | VU-1S |
Control Method | Manual Control |
Processing Sample Notch | V-shaped (2mm, Meet GB229-2007, ISO148) |
U-shaped (2mm, Meet GB229-2007) | |
Processing Sample Size | 10 x 10 (7.5 or 5) x 55 mm |
Broach Stroke | 350 mm |
Broaching Speed | 2.5 mm/min |
Broach Material | Special Alloy Steel W18Cr4V |
