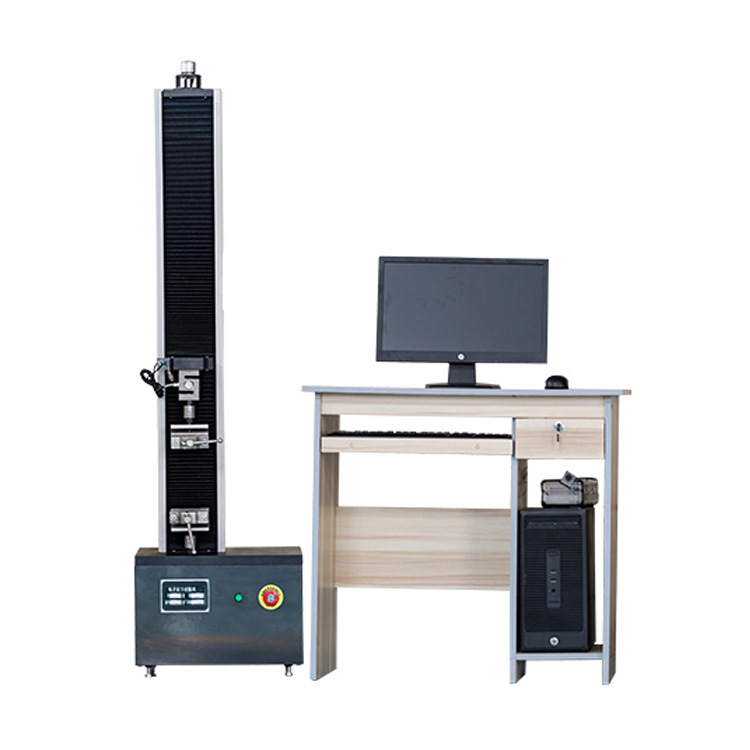

LDW Series (Floor-standing Type) Single Column Computer Control Electronic Universal Testing Machine

1.Application:

LDW Series (Floor-standing Type) Single Column Computer Control Electronic Universal Testing Machine uses

high-strength light bars to fix the upper beam and the worktable to form a high-rigidity frame structure.

It is driven by the servo motor, which drives beam to move up and down through transmission mechanism to

realize the test loading process.

It is mainly used for testing mechanical properties of various metals, nonmetals and composite materials.

After the test is finished, the above test parameters are automatically calculated by microcomputer controller

according to the test parameter conditions set at the beginning of the test, and the corresponding test results

are displayed and automatically saved. Each test parameter can be queried and displayed after the test.

It is suitable for manufacturing industries such as metals, adhesives, pipes, profiles, aerospace, petrochemical

industry, waterproof coiled materials, wires and cables, textiles, fibers, rubber, ceramics, medical packaging,

geotextiles, films, paper and other manufacturing industries as well as product quality supervision departments

at all levels. It is also suitable for teaching demonstration work in colleges and universities.

2.Technical Parameter:

Model	LDW-01	LDW-05	LDW-1	LDW-2	LDW-3	LDW-5
Max. Test Force	100 N	500 N	1 KN	2 KN	3 KN	5 KN
Accuracy	Class 1
Measurement Range	2% ~ 100%FS
Measurement Accuracy	±1%
Resolution Of Test Force	1 / 500000 Of Full Scale
Displacement Measurement Accuracy	±1%
Displacement Measurement Resolution	0.001 mm
Deformation Measurement Accuracy	±1%
Deformation Measurement Resolution	0.001 mm
Displacement Control Speed Range	0.001 ~ 500 mm/min
Adjustment Range Of Stress and Strain Control Speed Rate	0.005 ~ 5%FS/S
Max. Stroke Of Crossbeam	1000 mm
Effective Tensile Space	0 ~ 800 mm
Effective Compression Space	0 ~ 800 mm

Computer Control Type
